Product Specifications
| Manufacturer Part Number | 970-000-107 |
| Maximum Axial Depth of Cut (Decimal Inch) | 0.039" |
| Minimum Cutting Diameter (Decimal Inch) | 1.035" |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Machine Side Connection Diameter (Decimal Inch) | 0.500" |
| Functional Length (Decimal Inch) | 1.750" |
| Maximum Ramping Angle (Degree) | 1.2 Degree |
| Cutting Edge Count Effective | 4 |
| Cutting Edge Count | 4 |
| Insert | PM3 10T308 |
| Insert Screw | PM3-35 |

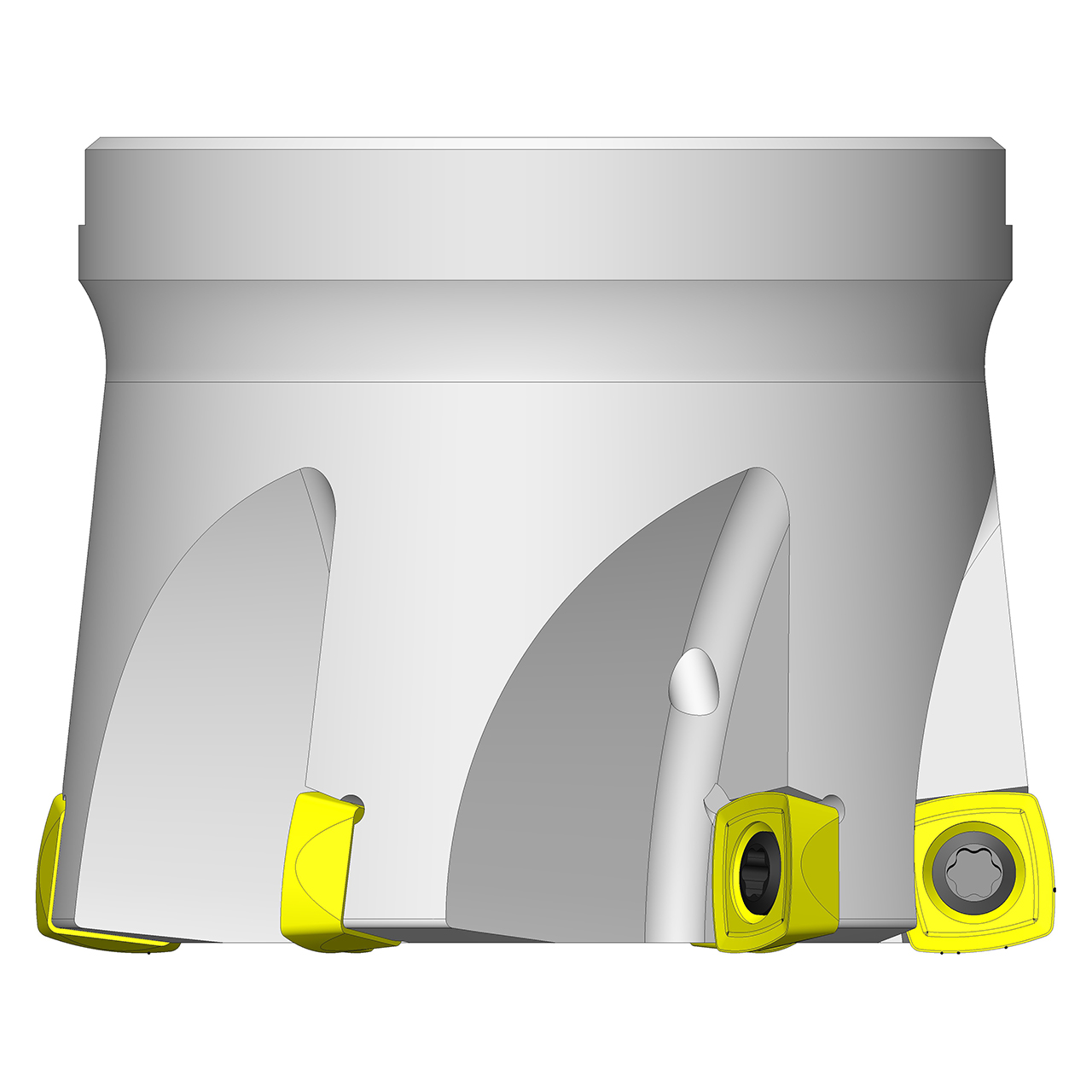

| Product Type | Indexable High-Feed Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Ultra-Dex
