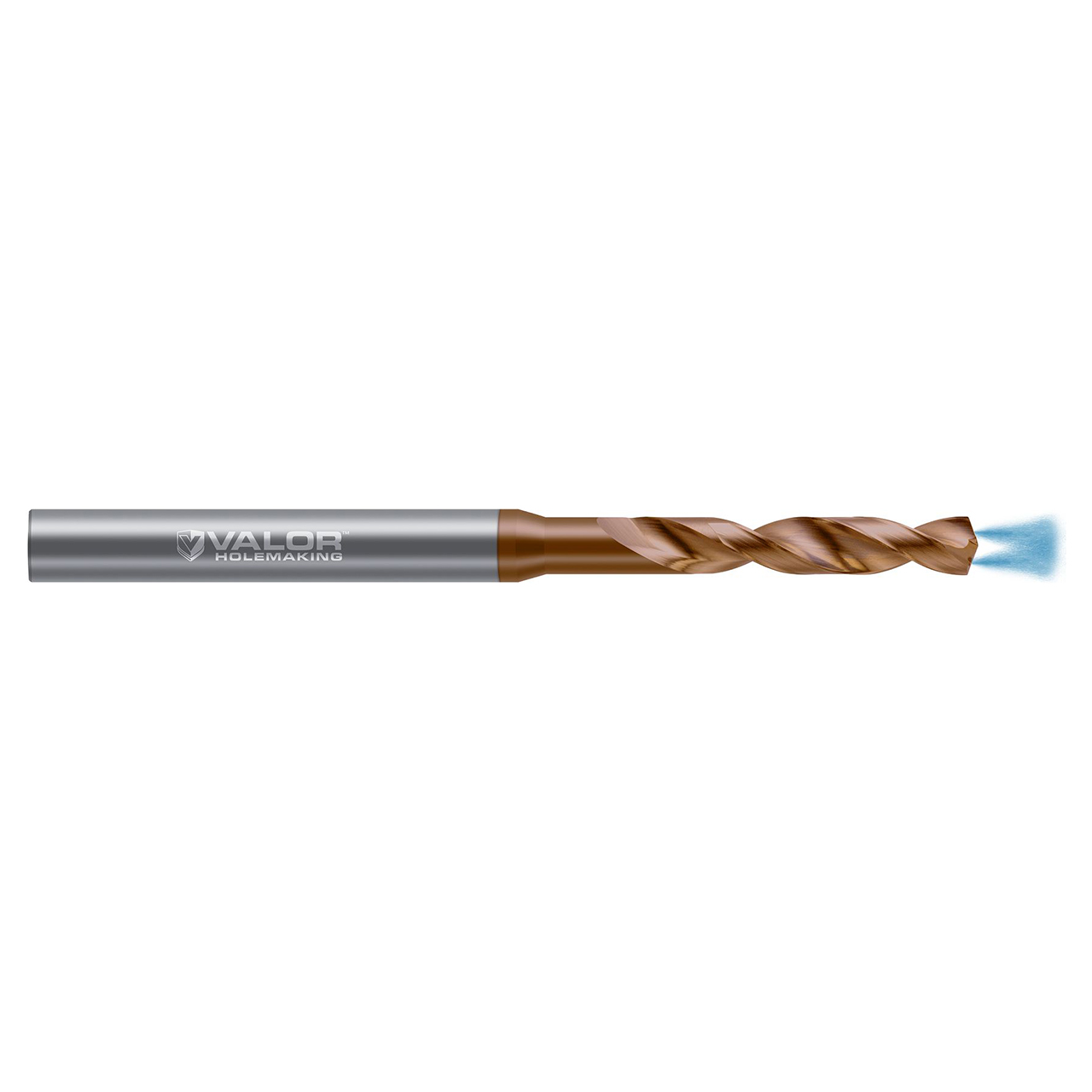

Valor holemaking's offering of high performance drills - steels - coolant-through provides best-in-class performance in 4140 steel and other alloy steels, and features coolant-through channels for enhanced chip evacuation.
Features:
- Unbeatable performance when coolant-through drilling 4140 steel
- Provides excellent performance in stainless steels and cast iron
- Engineered double margin geometry provides performance and stability when drilling intersecting holes and/or exiting holes on inclined or irregular surfaces
- Pre and post polish process delivers reduced friction and ensures outstanding chip management
- 140 Degree point angle with 4-facet geometry for improved self-centering
- h6 shank tolerance for high precision tool holders
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V399606-X |
| Drill Diameter (Inch) | 0.4219" |
| Drill Diameter (mm) | 10.716mm |
| Drill Length (mm) | 53.60mm |
| Flute Length (Inch) | 2.517" |
| Flute Length (mm) | 63.93mm |
| End Length (mm) | 1.95mm |
| Shank Diameter (mm) | 12.000mm |
| Overall Length (mm) | 125.000mm |
| LOC Multiple | (5x) |
| Point Angle | 140 Degree |
| Metric | Y |
| Coolant Through | Y |
| Number of Flutes | 2 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Flute Length (Inch):
2-2/5"
Flute Length (Decimal Inch):
2.3996"
Flute Length (mm):
60.95mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
4.9213"
Overall Length (mm):
125.00mm
Coating:
Val-Max X
Coolant Through:
Yes
interval quantity:
1
