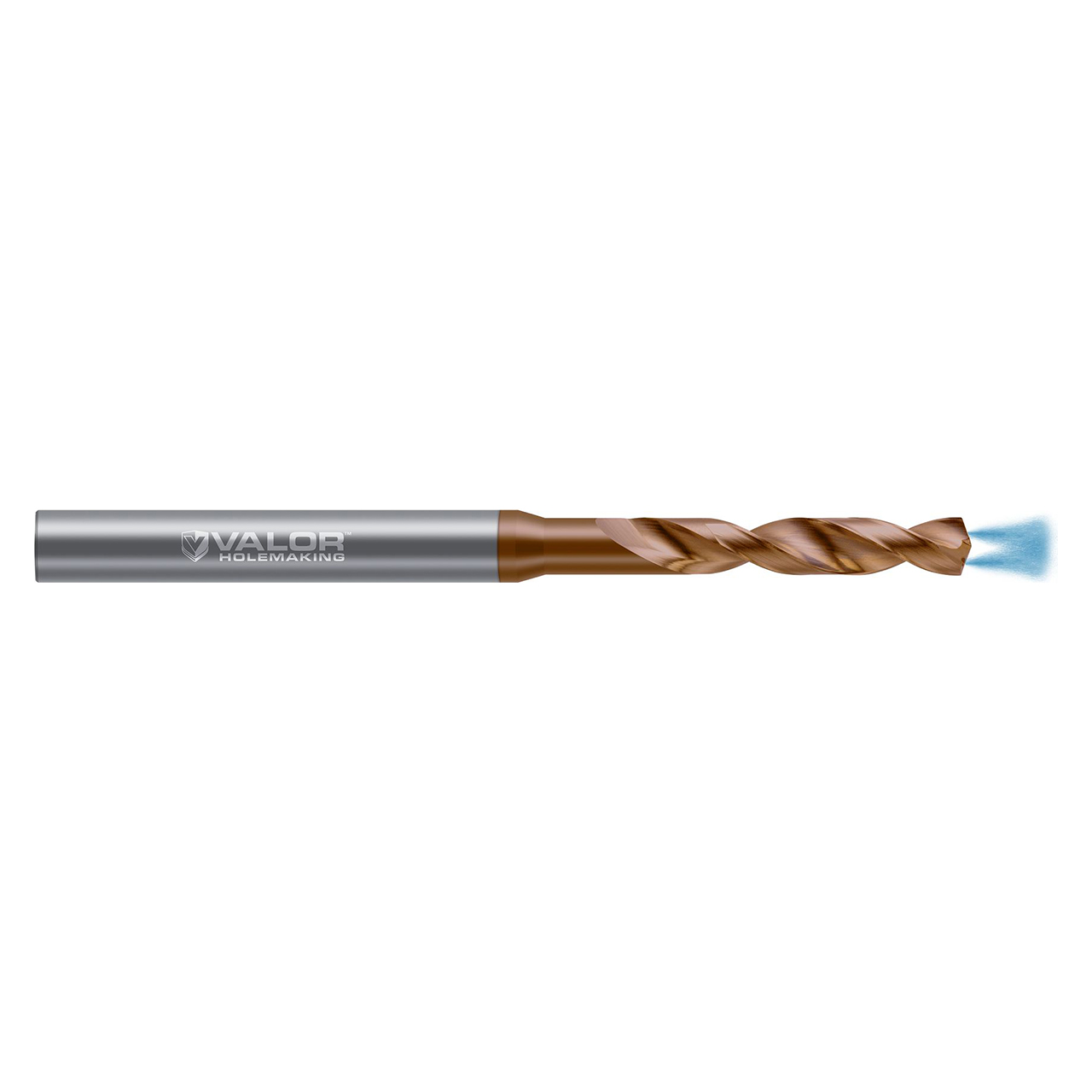

Product Specifications
| Manufacturer Part Number | V523682-X |
| Drill Diameter (Decimal Inch) | 0.319" |
| Drill Diameter (mm) | 8.10mm |
| Drill Length (Decimal Inch) | 0.957" |
| Drill Length (mm) | 24.30mm |
| Number of Flutes | 2 |
| Flute Length (mm) | 31.31mm |
| Flute Length (Decimal Inch) | 1.233" |
| End Length (mm) | 1.47mm |
| Shank Diameter (mm) | 10.00mm |
| LOC Multiple | (3x) |
| Coolant Through | Yes |
| Overall Length (mm) | 75.00mm |
| Coating | Val-Max X |
| Point Angle | 140 Degree |
| Product Type | High Performance Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Drill Point Angle:
140 Degree
Flute Length (Inch):
1-17/73"
Flute Length (Decimal Inch):
1.2330"
Flute Length (mm):
31.31mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9500"
Overall Length (mm):
75.00mm
Finish/Coating:
Val-Max X
Coolant Through:
Yes
Interval quantity:
1
