Product Specifications

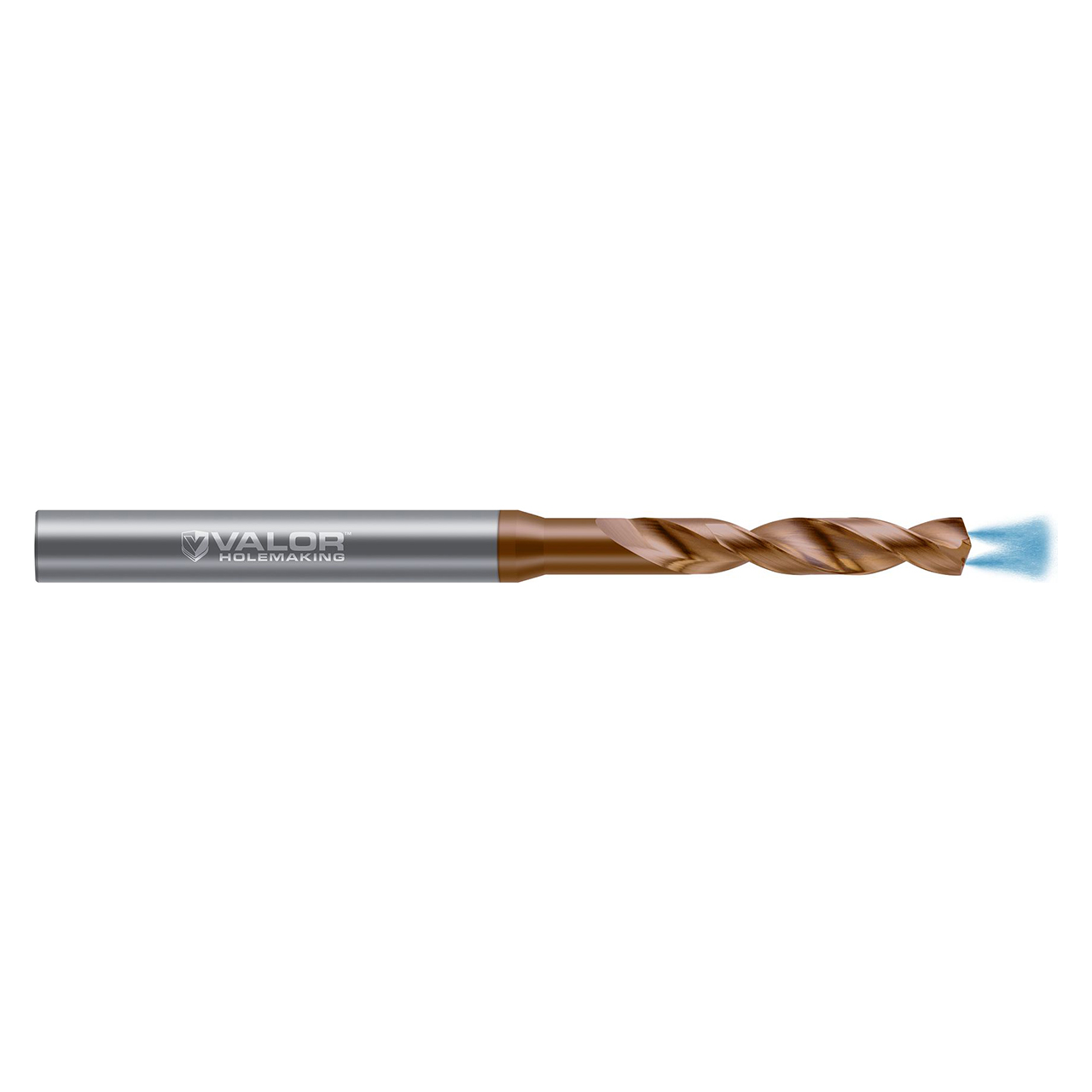

| Manufacturer Part Number | V528958-X |
| Drill Diameter (Decimal Inch) | 0.063" |
| Drill Diameter (mm) | 1.59mm |
| Drill Length (Decimal Inch) | 0.187" |
| Drill Length (mm) | 4.76mm |
| Number of Flutes | 2 |
| Flute Length (mm) | 6.13mm |
| Flute Length (Decimal Inch) | 0.241" |
| End Length (mm) | 0.29mm |
| Shank Diameter (mm) | 3.00mm |
| LOC Multiple | (3x) |
| Size | 1/16" |
| Coolant Through | Yes |
| Overall Length (mm) | 63.00mm |
| Coating | Val-Max X |
| Point Angle | 140 Degree |
| Product Type | High Performance Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Drill Bit Size (Inch):
1/16"
Drill Bit Size (Decimal Inch):
0.0600"
Drill Bit Size (mm):
1.59mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
20/83"
Flute Length (Decimal Inch):
0.2410"
Flute Length (mm):
6.13mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Finish/Coating:
Val-Max X
Coolant Through:
Yes
Interval quantity:
1
