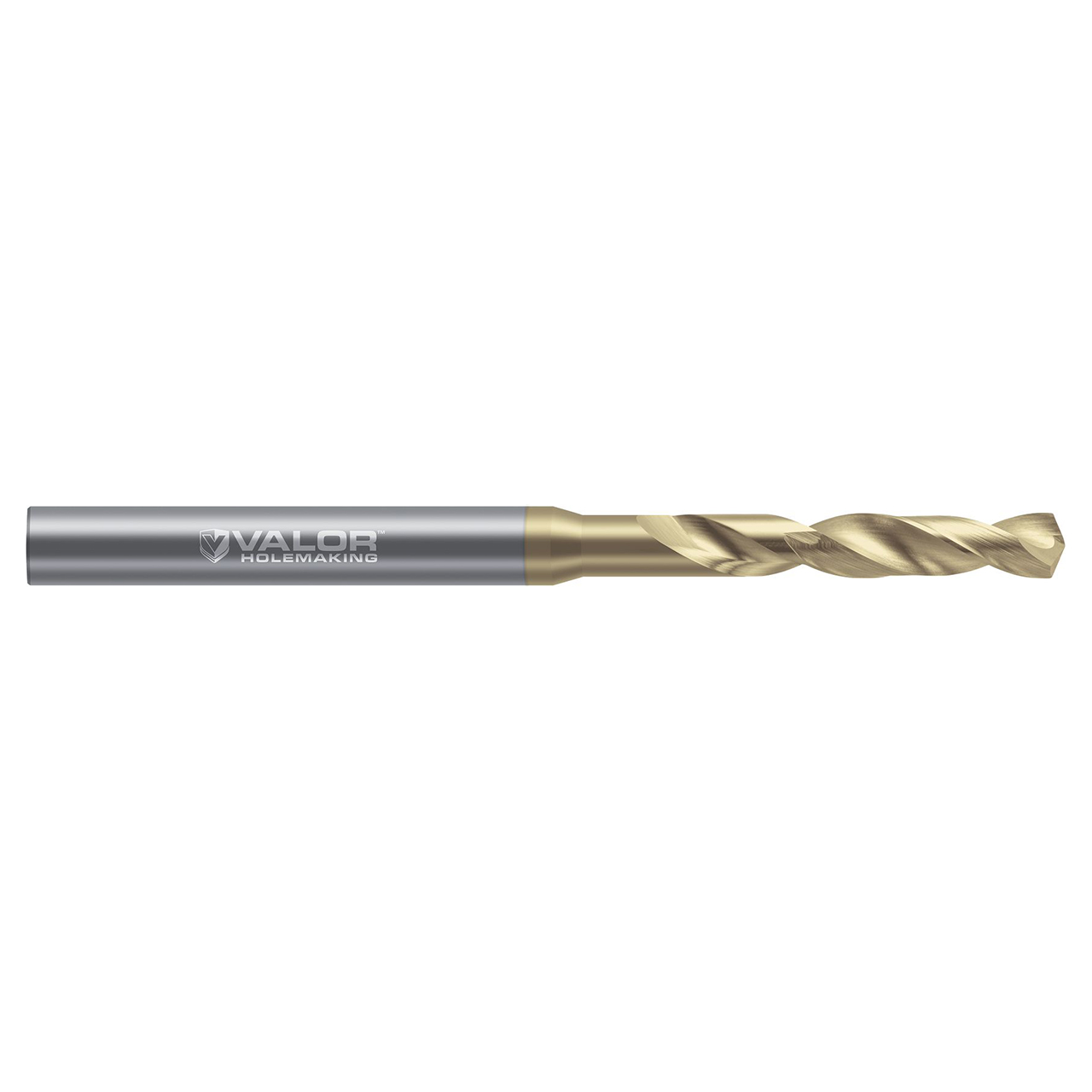

Optimized for best-in-class performance in 6061 aluminum, this Valor holemaking offering of high performance drills - aluminum & aluminum alloys features geometry designed to provide minimal entry and exit burrs.
Features:
- Provides excellent performance in other non-ferrous alloys
- Engineered cylindrical margin design ensures stability and improved performance
- Pre and post polish process delivers reduced friction and ensures outstanding chip management
- 135 Degree point angle with 4-facet geometry for improved self-centering
- h6 shank tolerance for high precision tool holders
- Proprietary Val-Max V coating delivers outstanding performance in aluminum alloys and other non-ferrous alloys
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V576080 |
| Drill Diameter (Inch) | 0.4062" |
| Drill Diameter (mm) | 10.317mm |
| Drill Length (mm) | 30.95mm |
| Flute Length (Inch) | 1.581" |
| Flute Length (mm) | 40.15mm |
| End Length (mm) | 2.14mm |
| Shank Diameter (mm) | 12.000mm |
| Overall Length (mm) | 100.000mm |
| LOC Multiple | (3x) |
| Point Angle | 135 Degree |
| Metric | Y |
| Coolant Through | N |
| Number of Flutes | 2 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5016"
Flute Length (mm):
38.14mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Coating:
Uncoated
Coolant Through:
No
