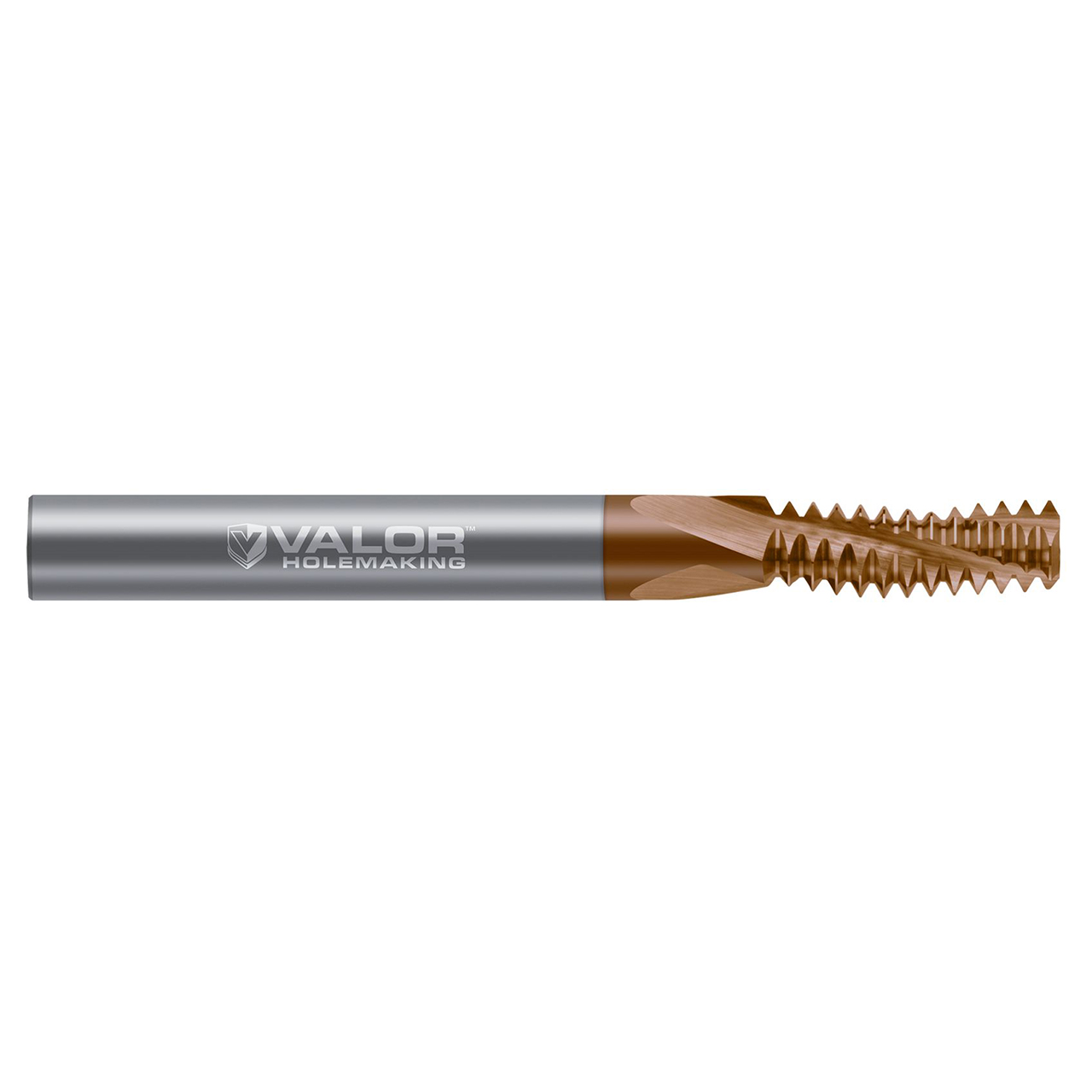

Valor V728692-X | 0.2350" Cutter Diameter x 0.2500" (1/4) Shank x 0.6250" (5/8) LOC 3 Flute Val-Max X Coated Helical Flute Thread Mill

$189.90
Brand:
Valor
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2350"
Cutter Diameter (mm):
5.97mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
Val-Max X
interval quantity:
1
SKU:
10270579
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

This offering of Valor holemaking multi-from thread mills is specially engineered to provide maximum versatility. Cut internal and external 60 Degree UN threads, and mill right hand and left hand threads with ease.

Features:

  • Amazingly versatile in right & left hand thread milling
  • Designed to mill right hand and left hand threads for added versatility
  • Able to cut larger threads of the same pitch
  • Offered in 3, 4, and 6 helical flutes
  • Uncoated option well-suited for Aluminum Alloys and other Non-Ferrous Alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV728692-X
Cutter Diameter (Inch)0.2350"
Length of Cut (Inch)0.6250" (5/8)
Shank Diameter (Inch)0.2500" (1/4)
Overall Length (Inch)2.5000" (2-1/2)
Size5/16-18
Included Angle60 Degree
MetricN
Number of Flutes3
CoatingVal-Max X
