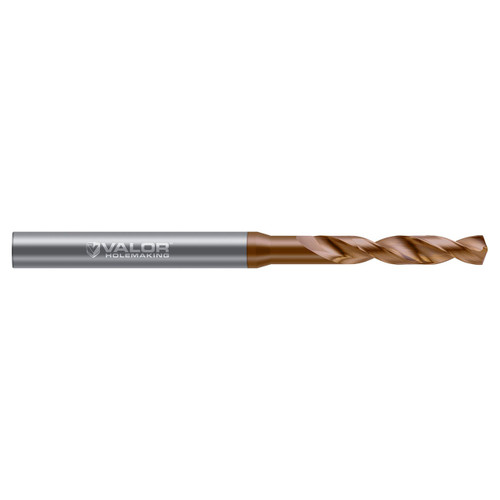

Valor V732216-V | 9.500mm Drill Diameter x 81.000mm Maximum Drill Depth x 150.000mm OAL 2 Flute Val-Max V Coated Screw Machine Length Drill Bit

$214.00
Brand:
Valor
Flute Length (Inch):
3-1/4"
Flute Length (Decimal Inch):
3.2665"
Flute Length (mm):
82.97mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
5.9055"
Overall Length (mm):
150.00mm
Coating:
Val-Max V
Coolant Through:
Yes
interval quantity:
1
SKU:
10271184
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Featuring coolant-through channels for enhanced chip evacuation, this offering of high performance drills - aluminum & aluminum alloys - coolant-through provides stability and improved performance during high performance drilling applications.

Features:

  • Unmatched precision in 6061 aluminum coolant-through drilling
  • Optimized for best-in-class performance in 6061 aluminum with superior performance in aluminum and aluminum alloys
  • Provides excellent performance in other non-ferrous alloys
  • Coolant-through channels further enhance chip evacuation
  • Geometry is designed to provide minimal entry and exit burrs
  • Engineered cylindrical margin design ensures stability and improved performance
  • Pre and post polish process delivers reduced friction and ensures outstanding chip management
  • 135 Degree point angle with 4-facet geometry for improved self-centering
  • h6 shank tolerance for high precision tool holders
  • Proprietary Val-Max V coating delivers outstanding performance in aluminum alloys and other non-ferrous alloys
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV732216-V
Drill Diameter (Inch)0.3740"
Drill Diameter (mm)9.500mm
Drill Length (mm)76.00mm
Flute Length (Inch)3.419"
Flute Length (mm)86.85mm
End Length (mm)1.97mm
Shank Diameter (mm)10.000mm
Overall Length (mm)150.000mm
LOC Multiple(8x)
Point Angle135 Degree
MetricY
Coolant ThroughY
Number of Flutes2
CoatingVal-Max V
