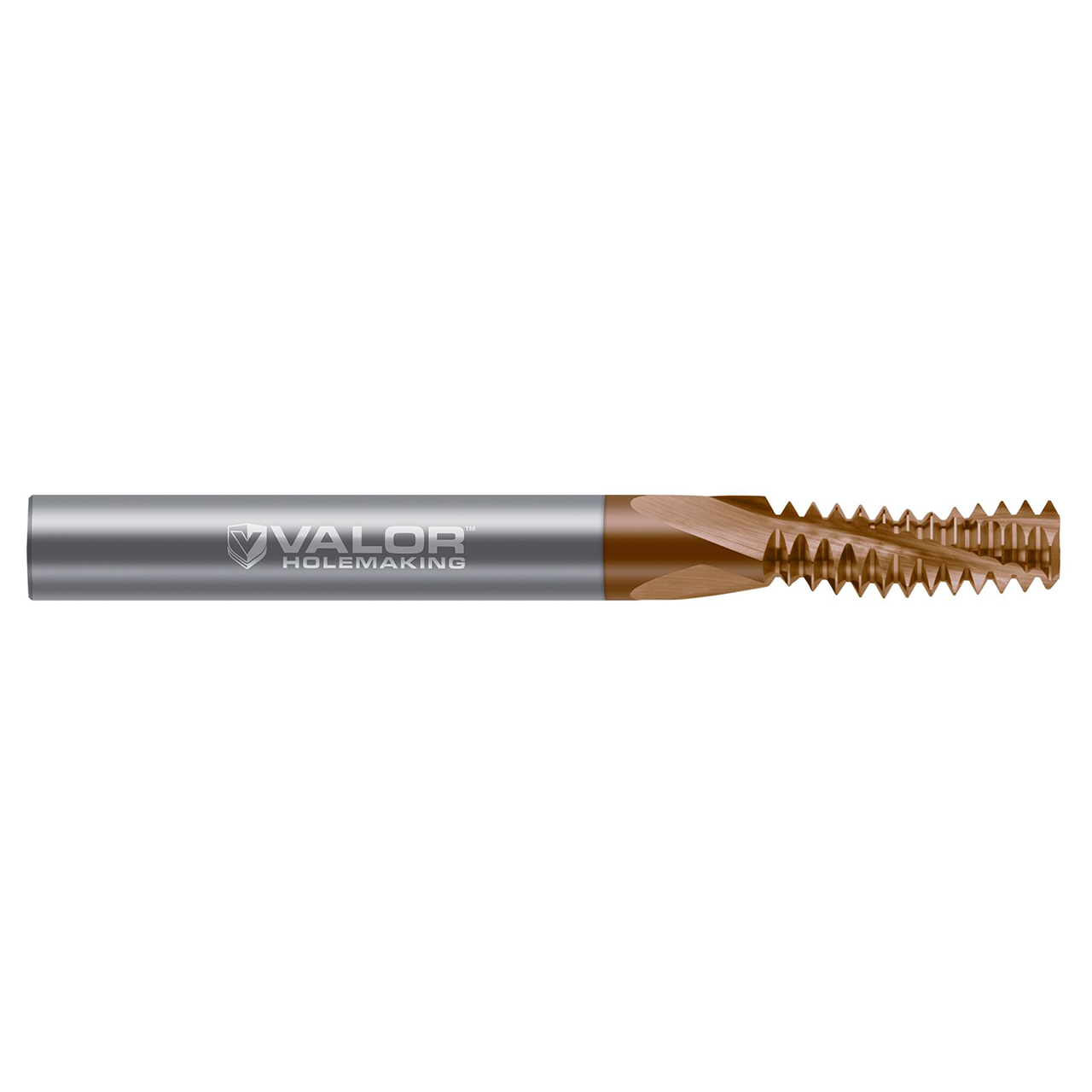

This offering of Valor holemaking multi-from thread mills is specially engineered to provide maximum versatility. Cut internal and external 60 Degree UN threads, and mill right hand and left hand threads with ease.
Features:
- Amazingly versatile in right & left hand thread milling
- Designed to mill right hand and left hand threads for added versatility
- Able to cut larger threads of the same pitch
- Offered in 3, 4, and 6 helical flutes
- Uncoated option well-suited for Aluminum Alloys and other Non-Ferrous Alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V825130-X |
| Cutter Diameter (Inch) | 0.0850" |
| Length of Cut (Inch) | 0.1750" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Size | 4-40 |
| Included Angle | 60 Degree |
| Metric | N |
| Number of Flutes | 3 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Decimal Inch):
0.0850"
Cutter Diameter (mm):
2.16mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
1/6"
Length of Cut (Decimal Inch):
0.1750"
Length of Cut (mm):
4.45mm
Finish/Coating:
Val-Max X
