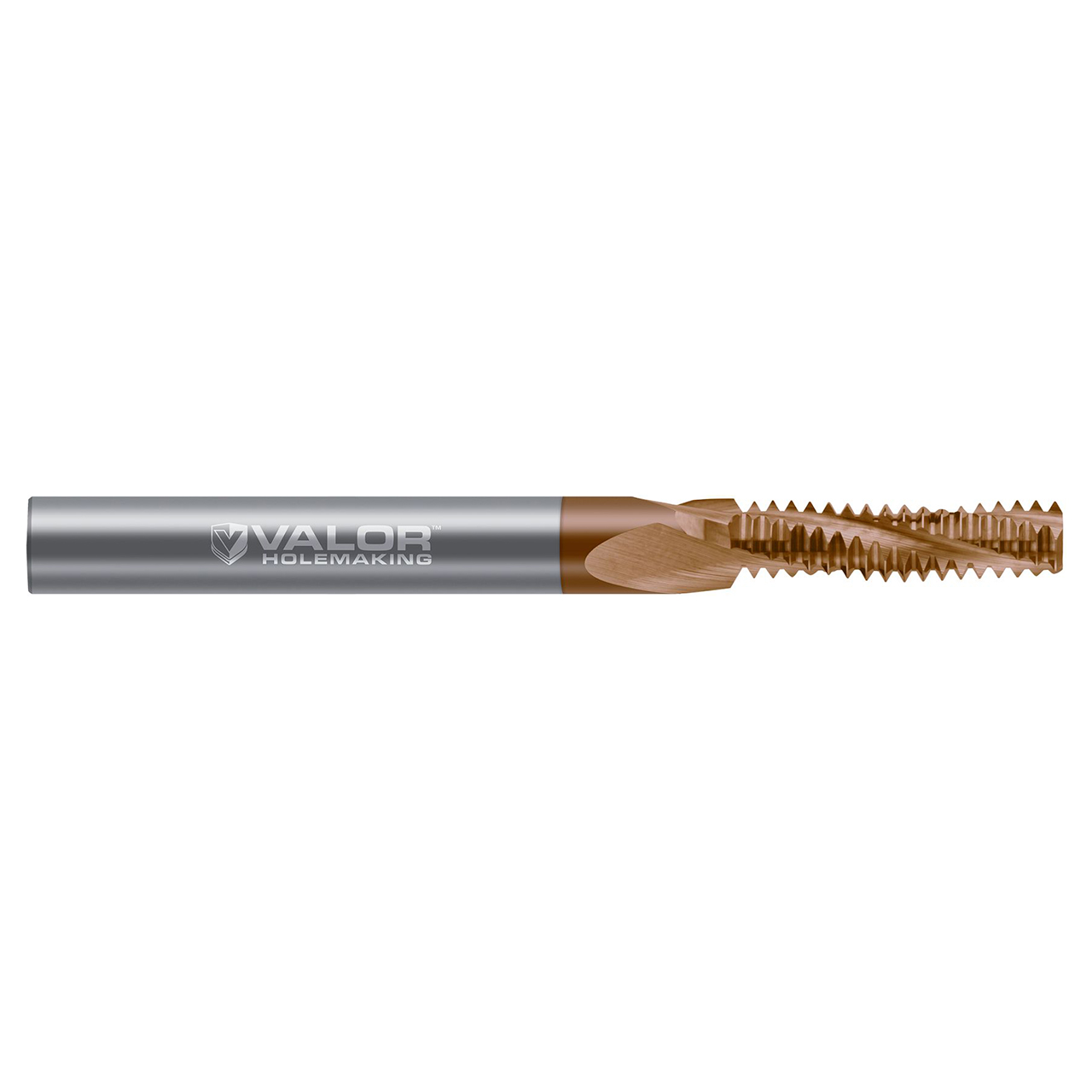

Featuring long flute geometry, this fully stocked offering of Valor holemaking multi-form thread mills is specifically designed for deep threaded applications and engineered to mill right hand and left hand threads.
Features:
- Superb strength in UN applications
- Increased cutter diameter allows for maximum strength while achieving 60% threads
- Designed to mill right hand and left hand internal 60 Degree UN threads
- Able to cut larger threads of the same pitch
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V911231-X |
| Cutter Diameter (Inch) | 0.1310" |
| Length of Cut (Inch) | 0.4070" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Size | 8-32 |
| Included Angle | 60 Degree |
| Metric | N |
| Number of Flutes | 3 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1310"
Cutter Diameter (mm):
3.33mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Number of Flutes:
3
Length of Cut (Inch):
2/5"
Length of Cut (Decimal Inch):
0.4070"
Length of Cut (mm):
10.34mm
Finish/Coating:
Val-Max X
