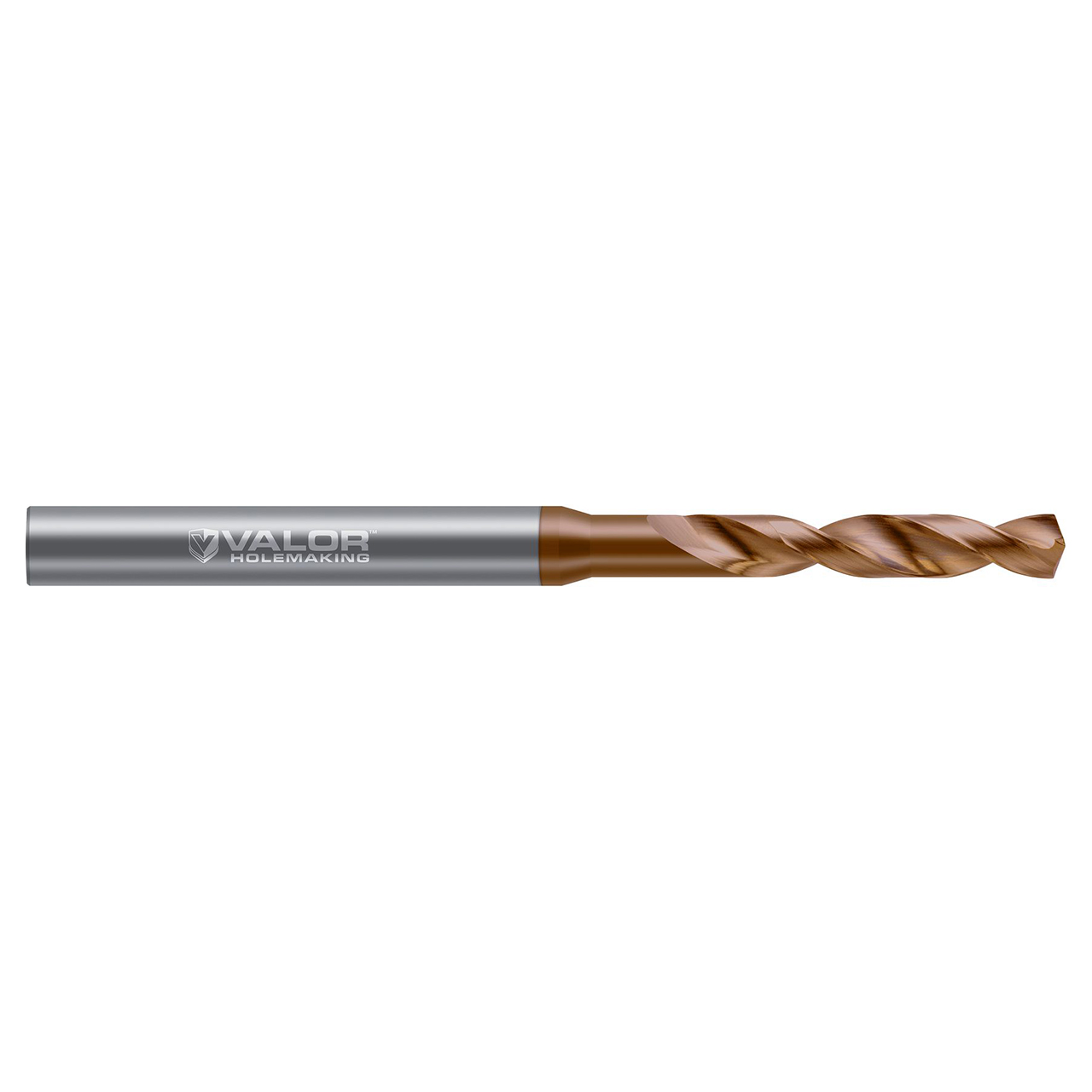

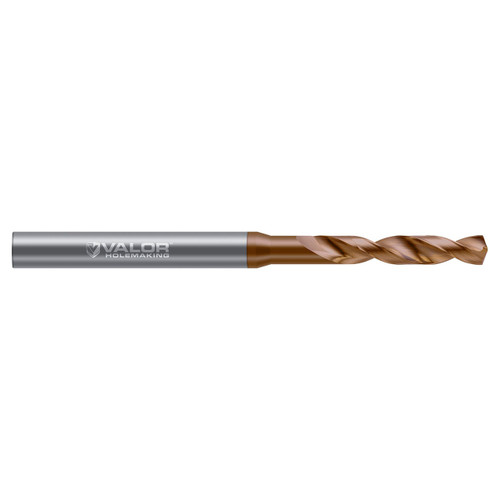

Valor V911271-X | 1.984mm Drill Diameter x 16.900mm Maximum Drill Depth x 63.000mm OAL 2 Flute Val-Max X Coated Screw Machine Length Drill Bit

$95.00
Brand:
Valor
Flute Length (Inch):
2/3"
Flute Length (Decimal Inch):
0.6795"
Flute Length (mm):
17.26mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
Coating:
Val-Max X
Coolant Through:
No
interval quantity:
1
SKU:
10269288
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Gift yourself best-in-class performance in 4140 Steel with this fully stocked offering of solid carbide high performance drills, engineered with double margin geometry for impressive performance and stability.

Features:

  • Exceptional design for precision drilling in 4140 steel
  • Provides excellent performance in stainless steels and cast iron
  • Engineered double margin geometry provides performance and stability when drilling intersecting holes and/or exiting holes on inclined or irregular surfaces
  • Pre and post polish process delivers reduced friction and ensures outstanding chip management
  • 140 Degree point angle with 4-facet geometry for improved self-centering
  • h6 shank tolerance for high precision tool holders
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV911271-X
Drill Diameter (Inch)0.0781"
Drill Diameter (mm)1.984mm
Drill Length (mm)15.85mm
Flute Length (Inch)0.712"
Flute Length (mm)18.08mm
End Length (mm)0.36mm
Shank Diameter (mm)3.000mm
Overall Length (mm)63.000mm
LOC Multiple(8x)
Point Angle140 Degree
MetricY
Coolant ThroughN
Number of Flutes2
CoatingVal-Max X

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
