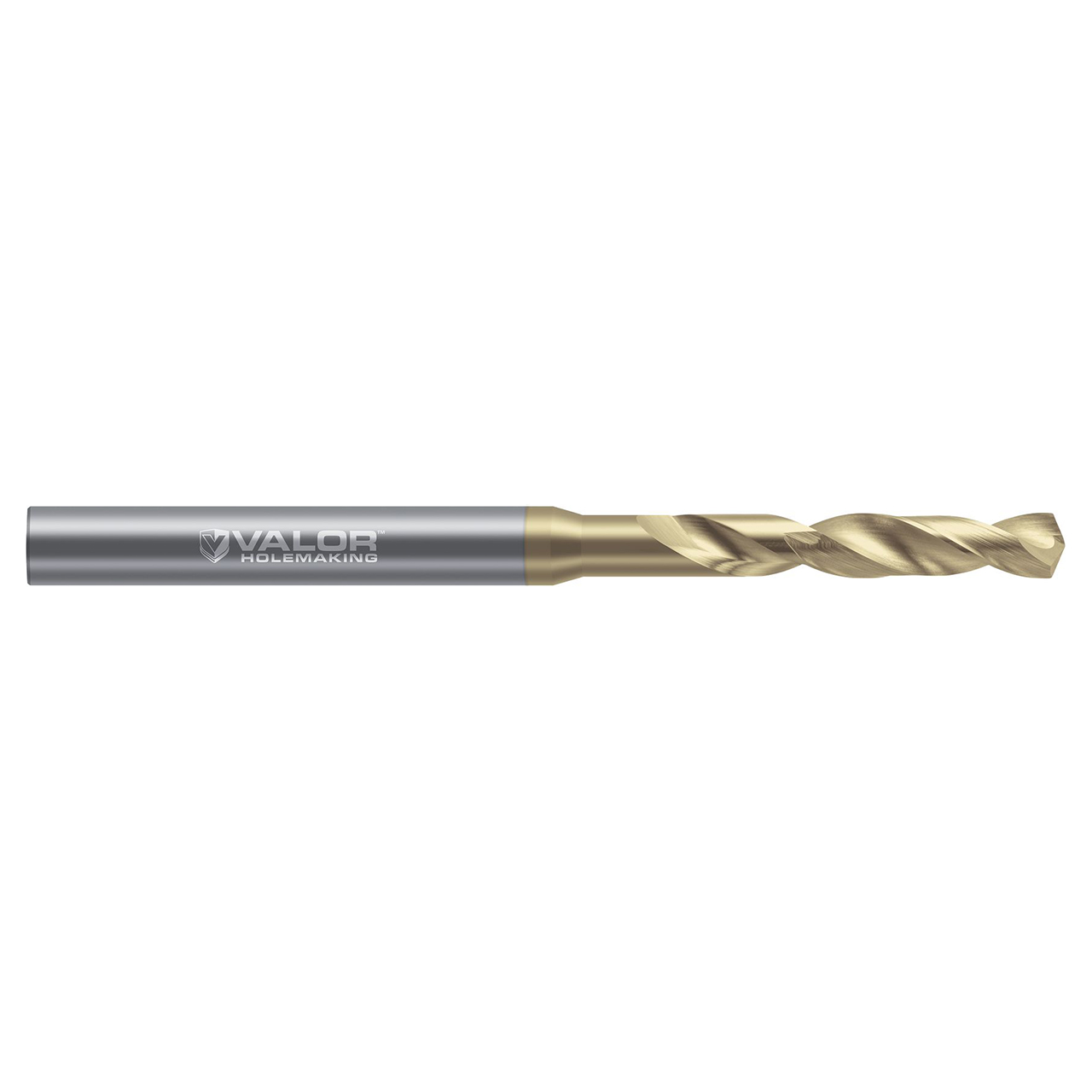

Valor V937306-V | 9.525mm Drill Diameter x 52.500mm Maximum Drill Depth x 100.000mm OAL 2 Flute Val-Max V Coated Screw Machine Length Drill Bit

$123.00
Brand:
Valor
Flute Length (Inch):
2-1/7"
Flute Length (Decimal Inch):
2.1445"
Flute Length (mm):
54.47mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Coating:
Val-Max V
Coolant Through:
No
interval quantity:
1
SKU:
10271201
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Optimized for best-in-class performance in 6061 aluminum, this Valor holemaking offering of high performance drills - aluminum & aluminum alloys features geometry designed to provide minimal entry and exit burrs.

Features:

  • Provides excellent performance in other non-ferrous alloys
  • Engineered cylindrical margin design ensures stability and improved performance
  • Pre and post polish process delivers reduced friction and ensures outstanding chip management
  • 135 Degree point angle with 4-facet geometry for improved self-centering
  • h6 shank tolerance for high precision tool holders
  • Proprietary Val-Max V coating delivers outstanding performance in aluminum alloys and other non-ferrous alloys
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV937306-V
Drill Diameter (Inch)0.3750"
Drill Diameter (mm)9.525mm
Drill Length (mm)47.65mm
Flute Length (Inch)2.247"
Flute Length (mm)57.07mm
End Length (mm)1.97mm
Shank Diameter (mm)10.000mm
Overall Length (mm)100.000mm
LOC Multiple(5x)
Point Angle135 Degree
MetricY
Coolant ThroughN
Number of Flutes2
CoatingVal-Max V

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
