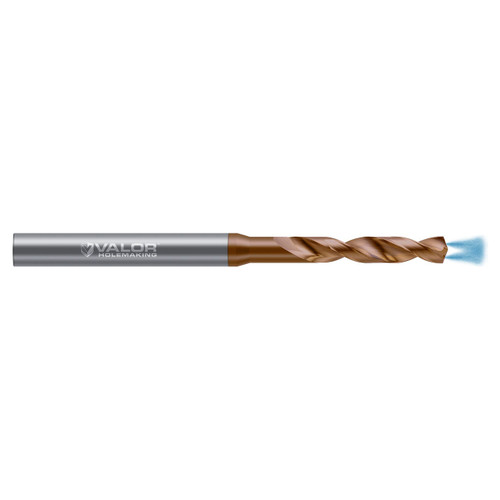

Valor V948444-X | 6.300mm Drill Diameter x 53.500mm Maximum Drill Depth x 125.000mm OAL 2 Flute Val-Max X Coated Screw Machine Length Drill Bit

$160.00
Brand:
Valor
Flute Length (Inch):
2-1/7"
Flute Length (Decimal Inch):
2.1516"
Flute Length (mm):
54.65mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
4.9213"
Overall Length (mm):
125.00mm
Coating:
Val-Max X
Coolant Through:
Yes
interval quantity:
1
SKU:
10270642
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Valor holemaking's offering of high performance drills - steels - coolant-through provides best-in-class performance in 4140 steel and other alloy steels, and features coolant-through channels for enhanced chip evacuation.

Features:

  • Unbeatable performance when coolant-through drilling 4140 steel
  • Provides excellent performance in stainless steels and cast iron
  • Engineered double margin geometry provides performance and stability when drilling intersecting holes and/or exiting holes on inclined or irregular surfaces
  • Pre and post polish process delivers reduced friction and ensures outstanding chip management
  • 140 Degree point angle with 4-facet geometry for improved self-centering
  • h6 shank tolerance for high precision tool holders
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV948444-X
Drill Diameter (Inch)0.2480"
Drill Diameter (mm)6.300mm
Drill Length (mm)50.40mm
Flute Length (Inch)2.261"
Flute Length (mm)57.43mm
End Length (mm)1.15mm
Shank Diameter (mm)8.000mm
Overall Length (mm)125.000mm
LOC Multiple(8x)
Point Angle140 Degree
MetricY
Coolant ThroughY
Number of Flutes2
CoatingVal-Max X
