| Manufacturer Part Number | EMI43973 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (Inch) | 5" |
| Overall Length (mm) | 127.00mm |
| Corner Radius (Decimal Inch) | 0.0900" |
| Corner Radius (Inch) | 1/11" |
| Corner Radius (mm) | 2.29mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | 38 |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

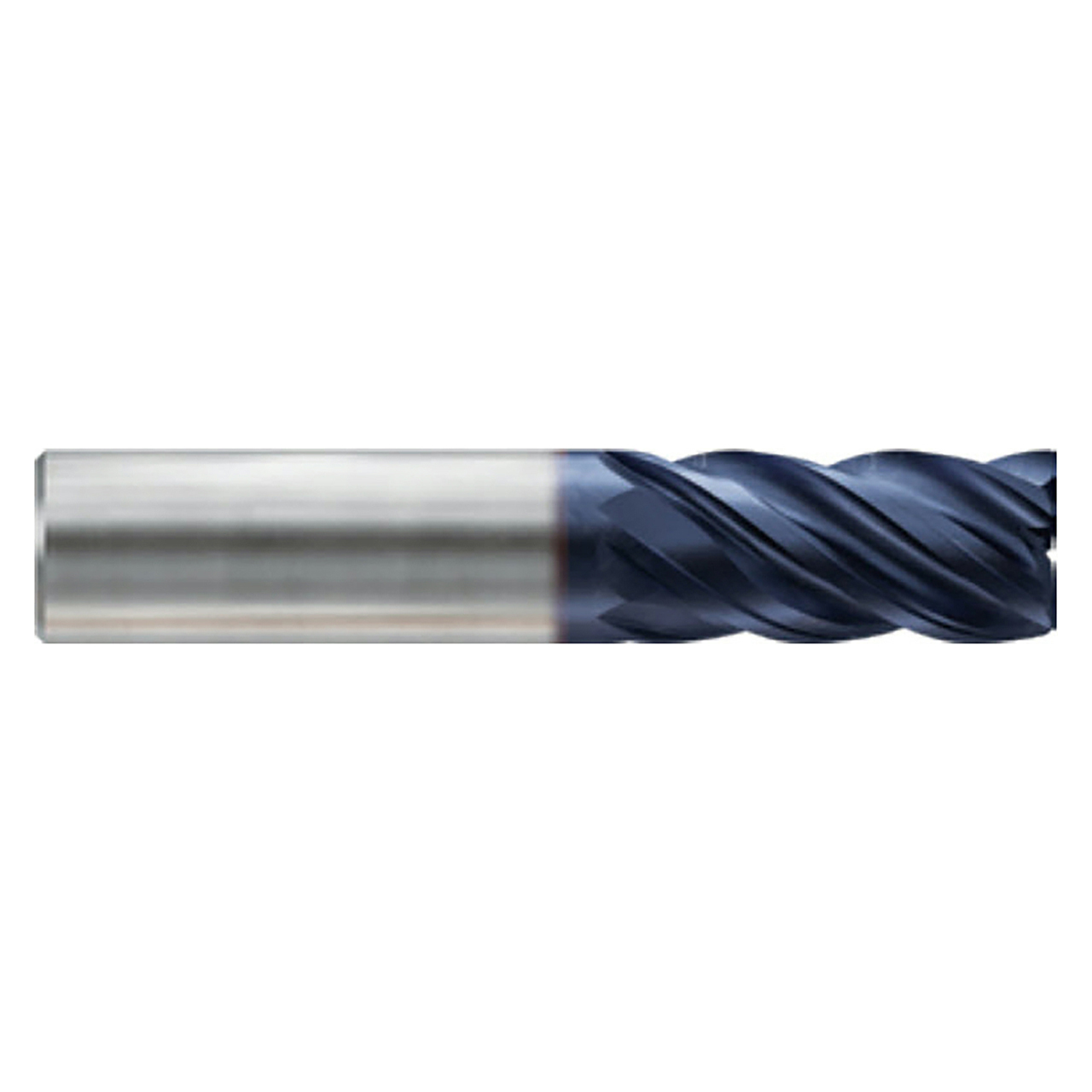

| Product Type | Corner Radius End Mill |
