| Manufacturer Part Number | GMG40903 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.7480" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.00mm |
| Length Below Shank (Decimal Inch) | 0.9843" |
| Length Below Shank (Inch) | 62/63" |
| Length Below Shank (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.4803" |
| Overall Length (Inch) | 2-12/25" |
| Overall Length (mm) | 63.00mm |
| Corner Radius (Decimal Inch) | 0.0591" |
| Corner Radius (Inch) | 1/17" |
| Corner Radius (mm) | 1.50mm |
| Number of Flutes | 4 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

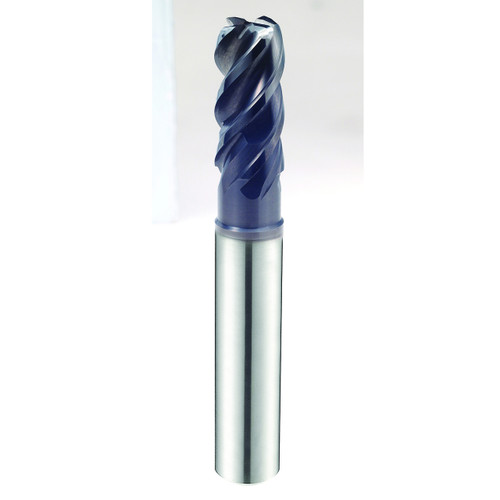

| Product Type | Corner Radius End Mill |
