| Manufacturer Part Number | UGMG43910 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0900" |
| Corner Radius (Inch) | 1/11" |
| Corner Radius (mm) | 2.29mm |
| Number of Flutes | 4 |
| Shank Style | Flat |
| Chamfer Angle | 45 Degree |
| Helix Angle | 45 Degree |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

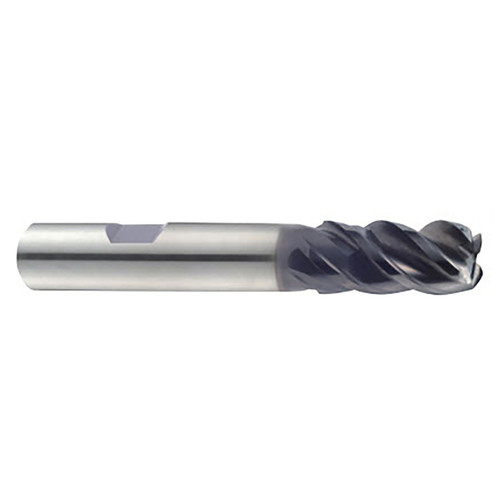

| Product Type | Corner Radius End Mill |
