| Manufacturer Part Number | UGMH07935 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Length Below Shank (Decimal Inch) | 4.1250" |
| Length Below Shank (Inch) | 4-1/8" |
| Length Below Shank (mm) | 104.80mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Corner Radius (Decimal Inch) | 0.1250" |
| Corner Radius (Inch) | 1/8" |
| Corner Radius (mm) | 3.18mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

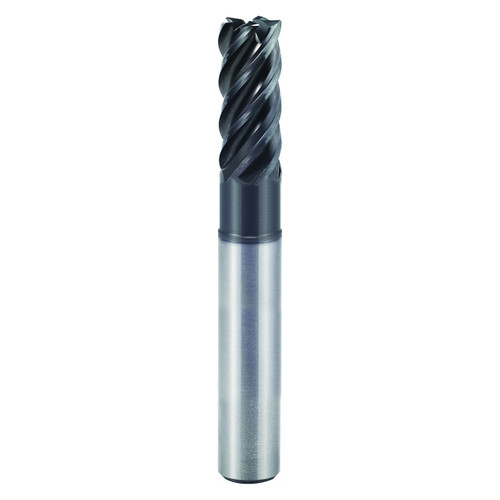

| Product Type | Square End Mill |
