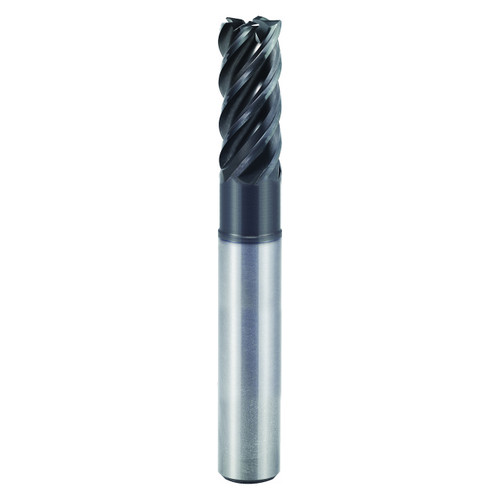

YG1 UGMH07948 | 5/8" Diameter x 5/8" Shank x 3/4" LOC x 4-1/8" LBS x 6" OAL x 43-45 Variable Helix Angle 5 Flute Y Coated Carbide UGMH07 Square End Mill

Brand:

YG1

Mill Diameter (Inch):

5/8"

Mill Diameter (Decimal Inch):

0.6250"

Mill Diameter (mm):

15.88mm

Number of Flutes:

5

Length of Cut (Inch):

3/4"

Length of Cut (Decimal Inch):

0.7500"

Length of Cut (mm):

19.05mm

Shank Type:

Plain

Material:

Carbide

Finish/Coating:

Y-Coating

Shank Diameter (Inch):

5/8"

Shank Diameter (Decimal Inch):

0.6250"

Shank Diameter (mm):

15.88mm

Application:

Stainless, Super Alloys

Overall Length (Inch):

6"

Overall Length (Decimal Inch):

6.0000"

Overall Length (mm):

152.40mm

Helix Angle:

43-45 Variable

Center Cutting (yes/no):

Yes

Cutting Direction:

Right Hand

interval quantity:

1

SKU:

25055473

UPC:

Weight:

0.91 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
