Product Specifications

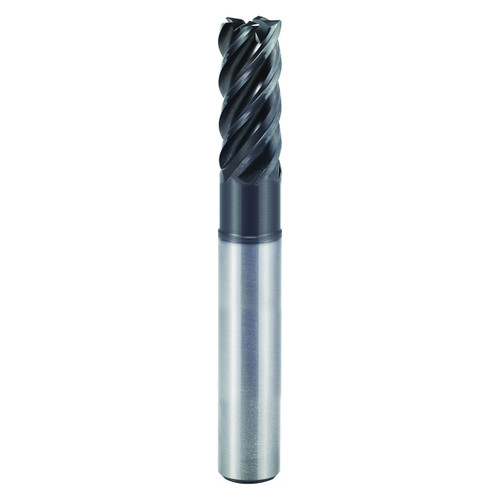

| ETP Number | UGMH07952 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 28.58mm |
| Length Below Shank (Decimal Inch) | 2.0000" |
| Length Below Shank (Inch) | 2" |
| Length Below Shank (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Corner Radius (Decimal Inch) | 0.0900" |
| Corner Radius (Inch) | 1/11" |
| Corner Radius (mm) | 2.29mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Number of Flutes:
5
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
Y-Coating
interval quantity:
1
