Product Specifications
| ETP Number | UGMH07966 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 28.58mm |
| Length Below Shank (Decimal Inch) | 3.2500" |
| Length Below Shank (Inch) | 3-1/4" |
| Length Below Shank (mm) | 82.60mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Corner Radius (Decimal Inch) | 0.1900" |
| Corner Radius (Inch) | 15/79" |
| Corner Radius (mm) | 4.83mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |

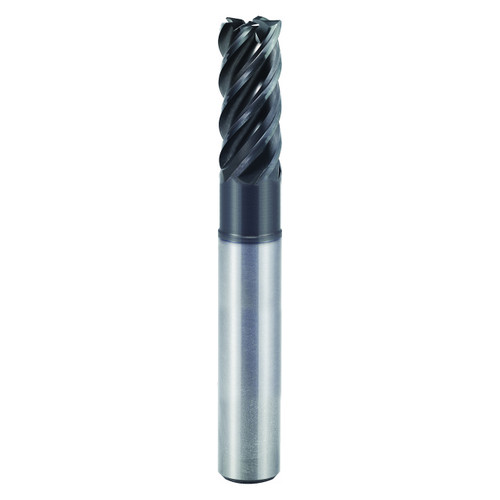

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
YG1
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Y-Coating
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Stainless, Super Alloys
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Helix Angle:
43-45 Variable
Center Cutting (yes/no):
Yes
Cutting Direction:
Right Hand
interval quantity:
1
