| Manufacturer Part Number | XB1D100 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (Inch) | 1" |
| Diameter (mm) | 25.40mm |
| Thickness (Decimal Inch) | 0.2440" |
| Thickness (Inch) | 10/41" |
| Thickness (mm) | 6.20mm |
| Insert Height (Decimal Inch) | 1.6250" |
| Insert Height (Inch) | 1-5/8" |
| Insert Height (mm) | 41.28mm |
| Ball Radius (Decimal Inch) | 0.5000" |
| Ball Radius (Inch) | 1/2" |
| Ball Radius (mm) | 12.70mm |
| Coating | DLC |
| Material | Carbide |
| Application | P,K,N |

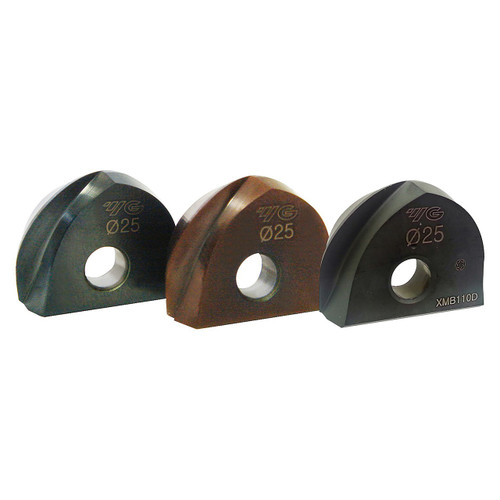

| Product Type | Ball Milling Insert |
