| Manufacturer Part Number | XRAA08005 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 5/53" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.5000" |
| Insert Height (Inch) | 1/2" |
| Insert Height (mm) | 12.70mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (mm) | 0.50mm |
| Outer Diameter Straight Length (Decimal Inch) | 0.0787" |
| Outer Diameter Straight Length (Inch) | 3/38" |
| Outer Diameter Straight Length (mm) | 2.00mm |
| Relief Angle | 4 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Application | P,K,N |

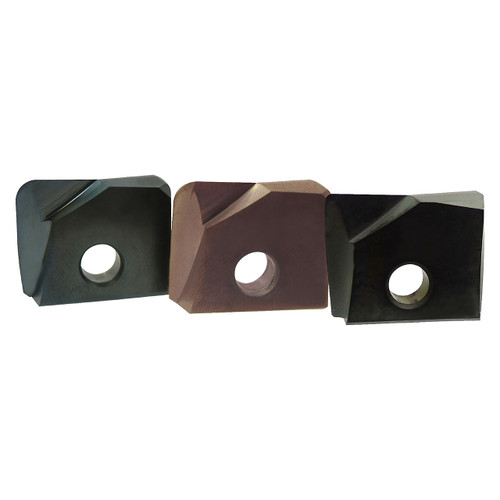

| Type | Corner Radius Milling Insert |
