| Manufacturer Part Number | XRAD12010 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Thickness (Decimal Inch) | 0.1260" |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.20mm |
| Insert Height (Decimal Inch) | 4.2500" |
| Insert Height (Inch) | 4-1/4" |
| Insert Height (mm) | 107.95mm |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (Inch) | 3/76" |
| Corner Radius (mm) | 1.00mm |
| Outer Diameter Straight Length (Decimal Inch) | 0.1181" |
| Outer Diameter Straight Length (Inch) | 2/17" |
| Outer Diameter Straight Length (mm) | 3.00mm |
| Relief Angle | 4 Degree |
| Coating | DLC |
| Material | Carbide |
| Application | P,K,N |

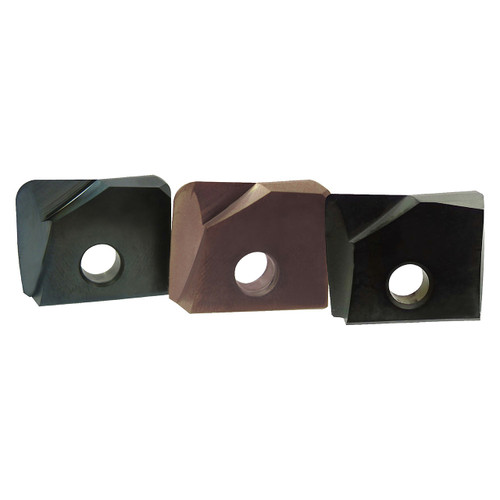

| Type | Corner Radius Milling Insert |
