| Manufacturer Part Number | XRBA13005 |
| Diameter (Decimal Inch) | 0.5118" |
| Diameter (Inch) | 22/43" |
| Diameter (mm) | 13.00mm |
| Thickness (Decimal Inch) | 0.1260" |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.20mm |
| Insert Height (Decimal Inch) | 2.0000" |
| Insert Height (Inch) | 2" |
| Insert Height (mm) | 50.80mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (mm) | 0.50mm |
| Outer Diameter Straight Length (Decimal Inch) | 0.1181" |
| Outer Diameter Straight Length (Inch) | 2/17" |
| Outer Diameter Straight Length (mm) | 3.00mm |
| Relief Angle | 4 Degree |
| Coating | H-Coating |
| Material | Carbide |
| Application | P,K,N |

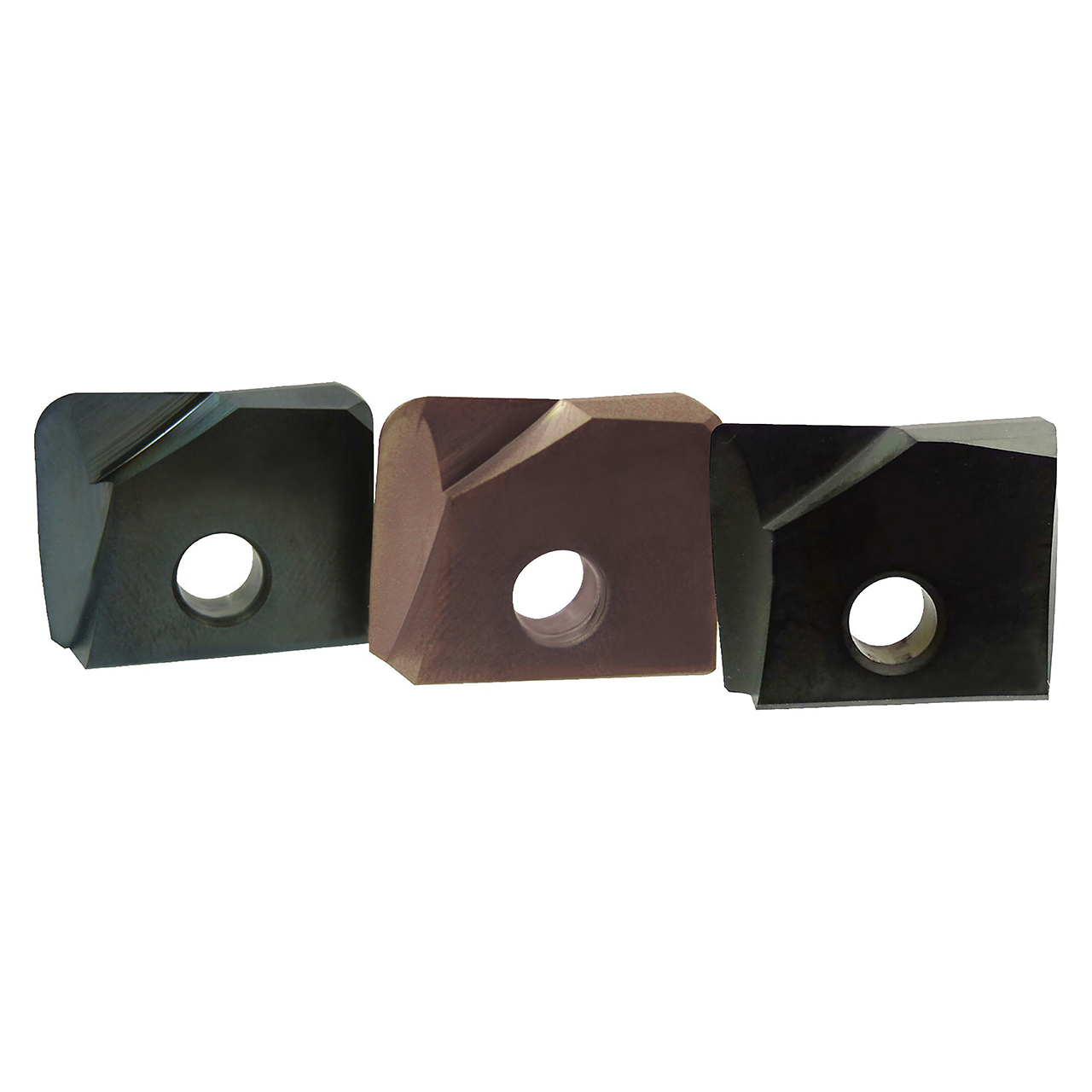

| Type | Corner Radius Milling Insert |
