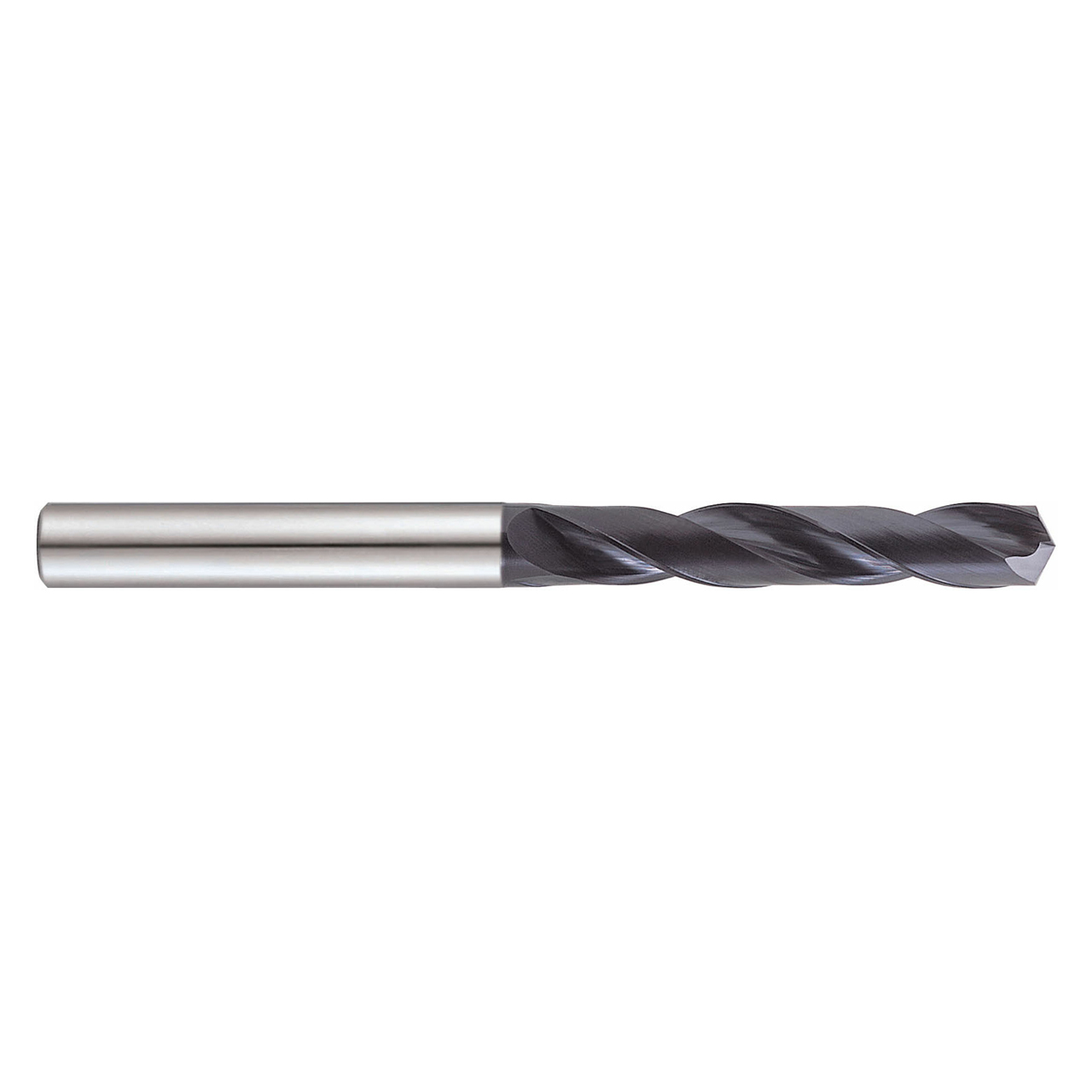

| Manufacturer Part Number | 0101ATF |
| Drill Bit Size (Inch) | 5/32" |
| Drill Bit Size (Decimal Inch) | 0.156" |
| Drill Bit Size (mm) | 3.97mm |
| Shank Diameter (Inch) | 5/32" |
| Shank Diameter (Decimal Inch) | 0.156" |
| Shank Diameter (mm) | 3.97mm |
| Length of Cut (Inch) | 7/8" |
| Length of Cut (Decimal Inch) | 0.875" |
| Length of Cut (mm) | 22.23mm |
| Overall Length (Inch) | 2-3/16" |
| Overall Length (Decimal Inch) | 2.188" |
| Overall Length (mm) | 55.56mm |
| Point Length (Decimal Inch) | 0.028" |
| Point Length (mm) | 0.72mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 3 |
| Shank Tolerance | h6 |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH414 |
| Hole Tolerance | +0-.00087 |
| Application | P |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill Bit |
