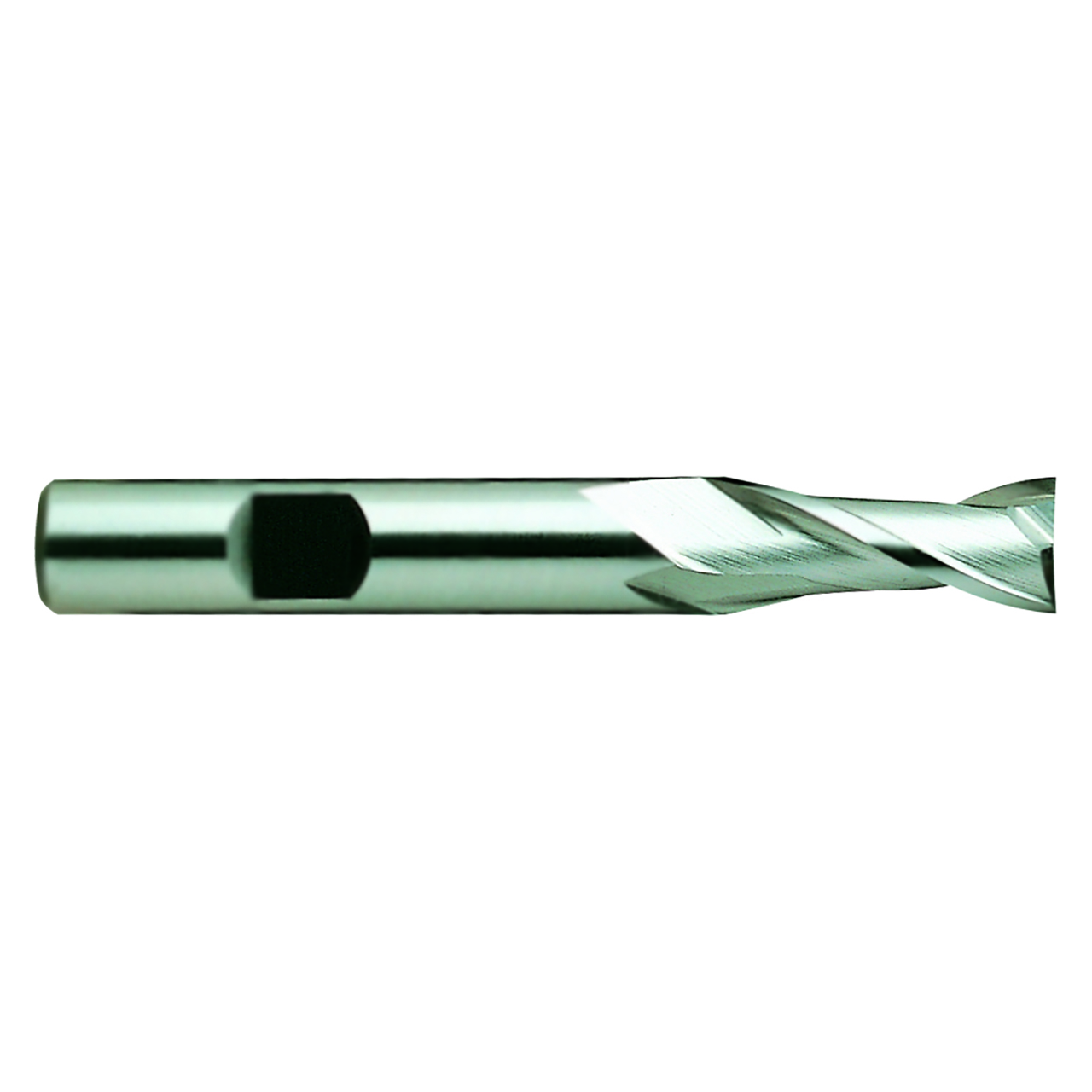

Product Specifications
| EDP Number | 01043HF |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.4375" |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 2.3125" |
| Overall Length (Inch) | 2-5/16" |
| Overall Length (mm) | 58.74mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1030 |
| End Type | Single End |
| Length Type | Regular |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
