Product Specifications
| Diameter (Decimal Inch) | 0161ATF |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Flute Length (Decimal Inch) | 1.6250" |
| Flute Length (Inch) | 1-5/8" |
| Flute Length (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.1875" |
| Overall Length (Inch) | 3-3/16" |
| Overall Length (mm) | 80.96mm |
| Point Length (Decimal Inch) | 0.0455" |
| Point Length (mm) | 1.16mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | +0-.00087 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

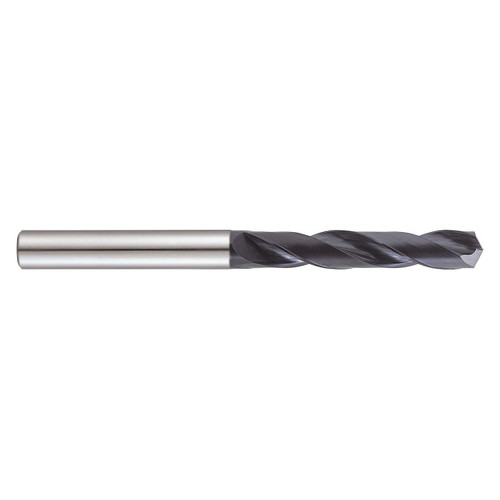

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
1/4"
Drill Bit Size (Decimal Inch):
0.2500"
Drill Bit Size (mm):
6.35mm
Flute Length (Inch):
1-5/8"
Flute Length (Decimal Inch):
1.6250"
Flute Length (mm):
80.96mm
Overall Length (Inch):
3-3/16"
Overall Length (Decimal Inch):
3.1875"
Overall Length (mm):
80.96mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
