| Manufacturer Part Number | 0171CTF |
| Drill Bit Size (Inch) | 17/64" |
| Drill Bit Size (Decimal Inch) | 0.266" |
| Drill Bit Size (mm) | 6.75mm |
| Shank Diameter (Inch) | 17/64" |
| Shank Diameter (Decimal Inch) | 0.266" |
| Shank Diameter (mm) | 6.75mm |
| Length of Cut (Inch) | 2-13/64" |
| Length of Cut (Decimal Inch) | 2.203" |
| Length of Cut (mm) | 55.96mm |
| Overall Length (Inch) | 4-19/64" |
| Overall Length (Decimal Inch) | 4.297" |
| Overall Length (mm) | 109.14mm |
| Point Length (Decimal Inch) | 0.048" |
| Point Length (mm) | 1.23mm |
| Drill Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Length / Diameter | 5 |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Coating | TiAlN |
| Material | Carbide |
| Series | DH418 |
| Hole Tolerance | +0-.00087 |
| Application | P |
| Cutting Direction | Right Hand |

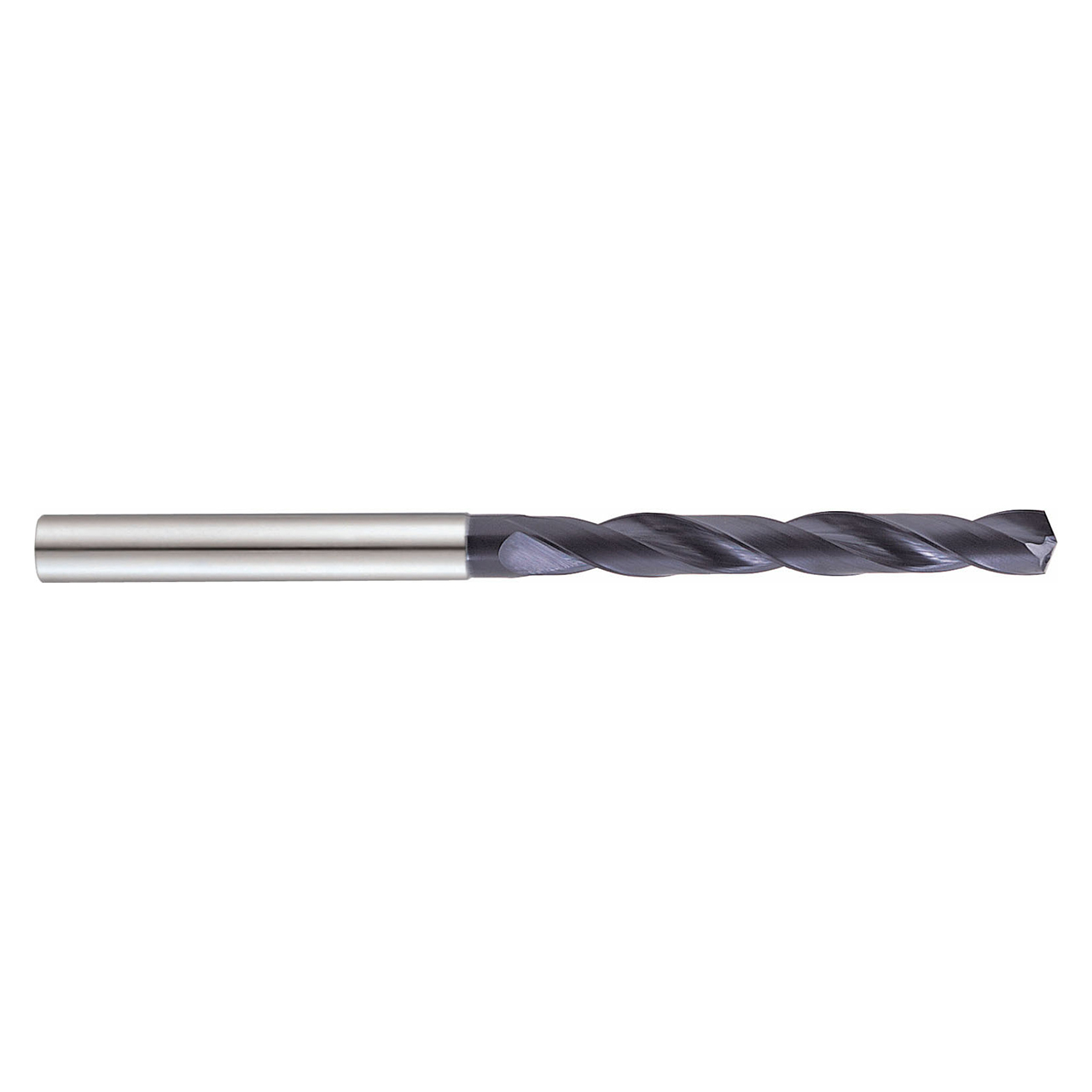

| Product Type | Dream Drill Bit |
