| Manufacturer Part Number | 02598TF |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 2.2500" |
| Length of Cut (Inch) | 2-1/4" |
| Length of Cut (mm) | 57.15mm |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (Inch) | 5" |
| Overall Length (mm) | 127.00mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5011 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

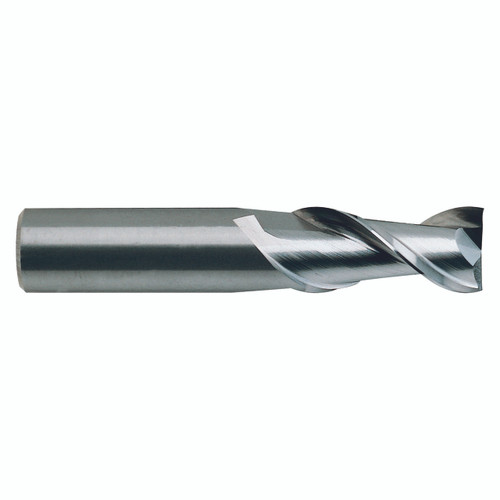

| Product Type | Square End Mill |
