Product Specifications
| EDP Number | 04046 |
| Diameter (Decimal Inch) | 0.2344" |
| Diameter (Inch) | 15/64" |
| Diameter (mm) | 5.95mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 2.4375" |
| Overall Length (Inch) | 2-7/16" |
| Overall Length (mm) | 61.91mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | Bright |
| Shank Style | Flat |
| Cut Type | End Cutting |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1031 |
| End Type | Single End |
| Length Type | Regular |

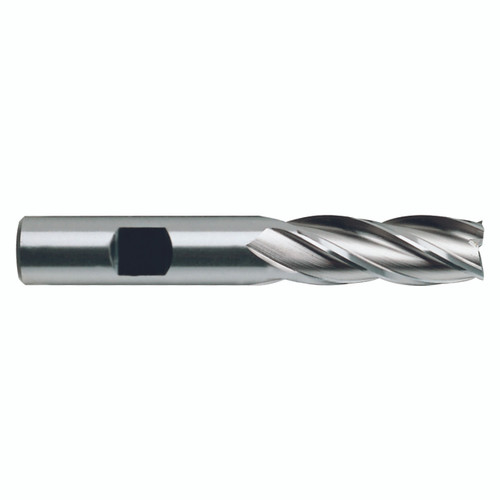

| Product Type | Square End Mill |
