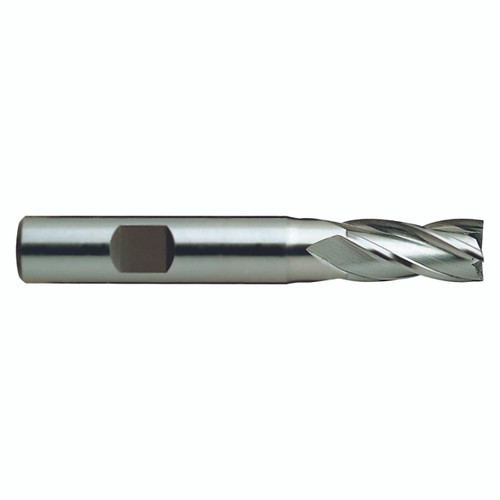

Product Specifications
| EDP Number | 07041HC |
| Diameter (Decimal Inch) | 0.1563" |
| Diameter (Inch) | 5/32" |
| Diameter (mm) | 3.97mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.4375" |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 2.3750" |
| Overall Length (Inch) | 2-3/8" |
| Overall Length (mm) | 60.33mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiCN |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1039 |
| End Type | Single End |
| Length Type | Regular |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1563"
Mill Diameter (mm):
3.97mm
Number of Flutes:
4
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Shank Type:
Flat
Material:
HSS
Finish/Coating:
TiCN
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
P
Single or Double End:
Single End
Overall Length (Inch):
2-3/8"
Overall Length (Decimal Inch):
2.3750"
Overall Length (mm):
60.33mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
