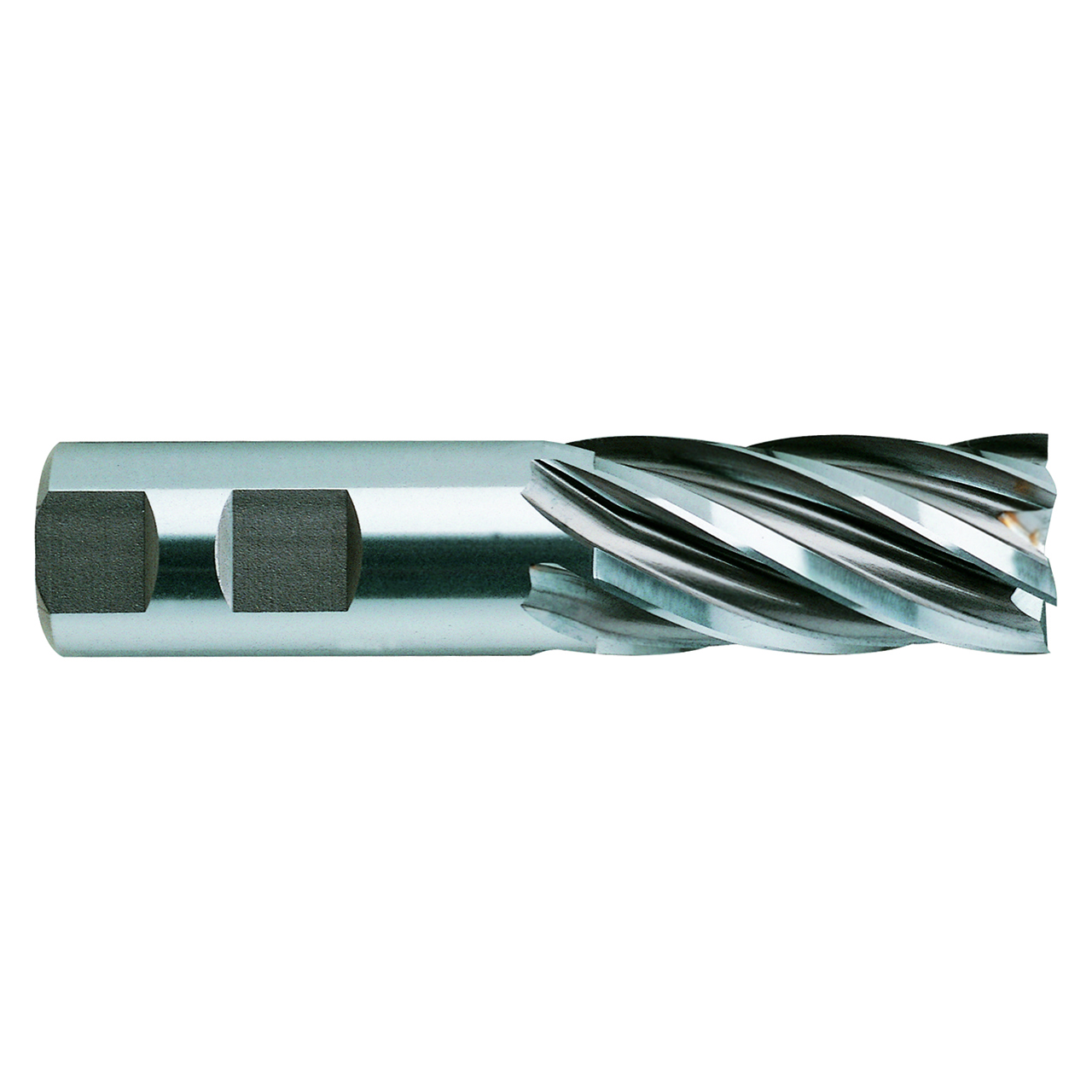

Product Specifications
| EDP Number | 07099HE |
| Diameter (Decimal Inch) | 0.6875" |
| Diameter (Inch) | 11/16" |
| Diameter (mm) | 17.46mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Number of Flutes | 6 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | AlTiN |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1042 |
| End Type | Single End |
| Length Type | Regular |
| Product Type | Square End Mill |
