Product Specifications
| EDP Number | 07570TF |
| Diameter (Decimal Inch) | 0.2200" |
| Diameter (Inch) | 7/32" |
| Diameter (mm) | 5.56mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5021 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

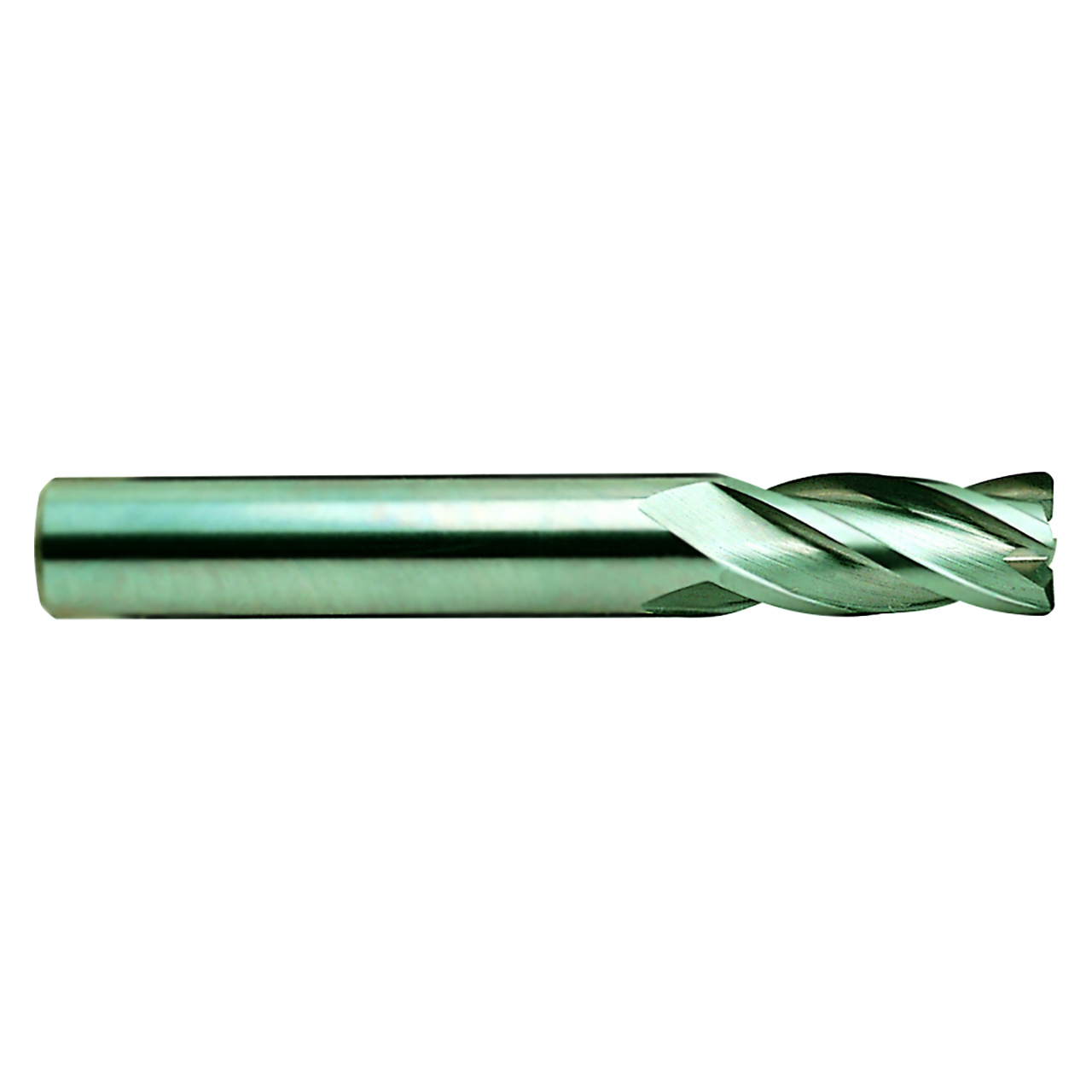

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.2188"
Diameter (Inch):
7/32"
Diameter (mm):
5.56mm
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (Inch):
1/4"
Shank Diameter (mm):
6.35mm
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Style:
Plain
Helix Angle:
30 Degree
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
Number of Flutes:
4
