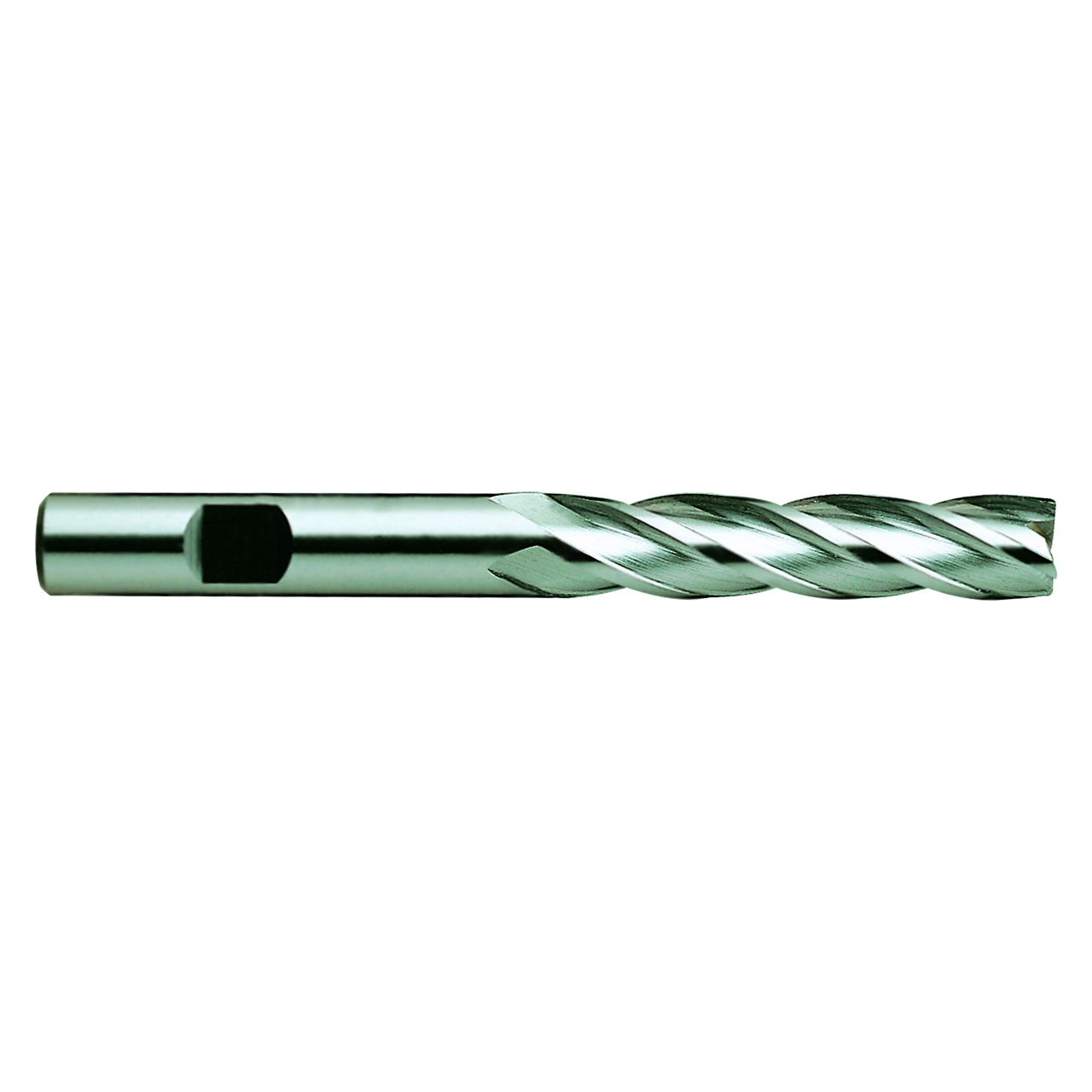

| Manufacturer Part Number | 08395CC |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (Inch) | 7/8" |
| Diameter (mm) | 22.23mm |
| Shank Diameter (Decimal Inch) | 0.8750" |
| Shank Diameter (Inch) | 7/8" |
| Shank Diameter (mm) | 22.23mm |
| Length of Cut (Decimal Inch) | 3.5000" |
| Length of Cut (Inch) | 3-1/2" |
| Length of Cut (mm) | 88.90mm |
| Overall Length (Decimal Inch) | 5.7500" |
| Overall Length (Inch) | 5-3/4" |
| Overall Length (mm) | 146.05mm |
| Series | E2162 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 6 |
| Coating | TiCN |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
