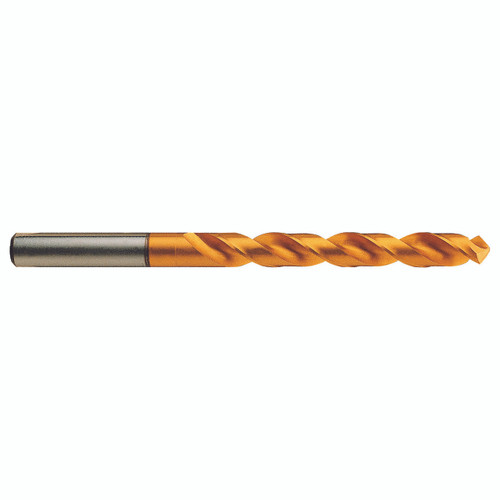

Product Specifications
| Manufacturer Part Number | 0931JCN |
| Diameter (Inch) | 26/71" |
| Diameter (Decimal Inch) | 0.3661" |
| Diameter (mm) | 9.30mm |
| Shank Diameter (Inch) | 26/71" |
| Shank Diameter (Decimal Inch) | 0.3661" |
| Shank Diameter (mm) | 9.30mm |
| Flute Length (Inch) | 1-23/40" |
| Flute Length (Decimal Inch) | 1.5748" |
| Flute Length (mm) | 40.00mm |
| Overall Length (Inch) | 3-25/46" |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (mm) | 90.00mm |
| Point Length (Decimal Inch) | 0.1057" |
| Point Length (mm) | 2.68mm |
| Number of Flutes | 2 |
| Series | DJ543 |
| Point Angle | 120 Degree |
| Helix Angle | 38 Degree |
| Length/Diameter | Stub |
| Shank Tolerance | h7 |
| Coolant Through | No |
| Coating | TiN |
| Material | HSS EX |
| Hole Tolerance | h8 |
| Application | P,M |
| Cutting Direction | Right |
| Blank Standard | DIN6535-HA |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
26/71"
Drill Bit Size (Decimal Inch):
0.3661"
Drill Bit Size (mm):
9.30mm
Flute Length (Inch):
1-23/40"
Flute Length (Decimal Inch):
1.5748"
Flute Length (mm):
40.00mm
Overall Length (Inch):
3-25/46"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Material:
HSS EX
Finish/Coating:
TiN
Cutting Direction:
Right
Coolant Through:
No
