Product Specifications
| EDP Number | 11050HE |
| Diameter (Decimal Inch) | 0.2969" |
| Diameter (Inch) | 19/64" |
| Diameter (mm) | 7.54mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.5625" |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (mm) | 79.38mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | AlTiN |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1050 |
| End Type | Double End |
| Length Type | Regular |

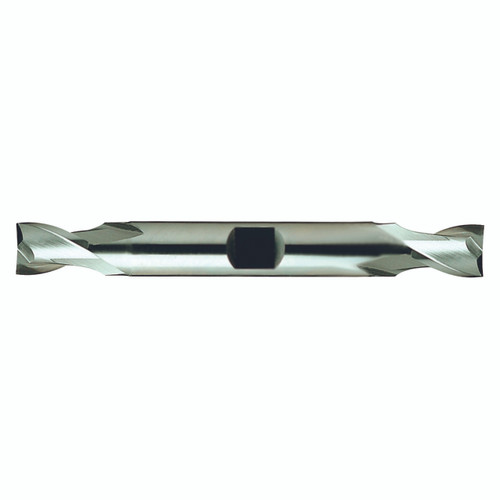

| Product Type | Square End Mill |
