Product Specifications
| EDP Number | 12051HF |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | End Cutting |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1051 |
| End Type | Double End |
| Length Type | Regular |

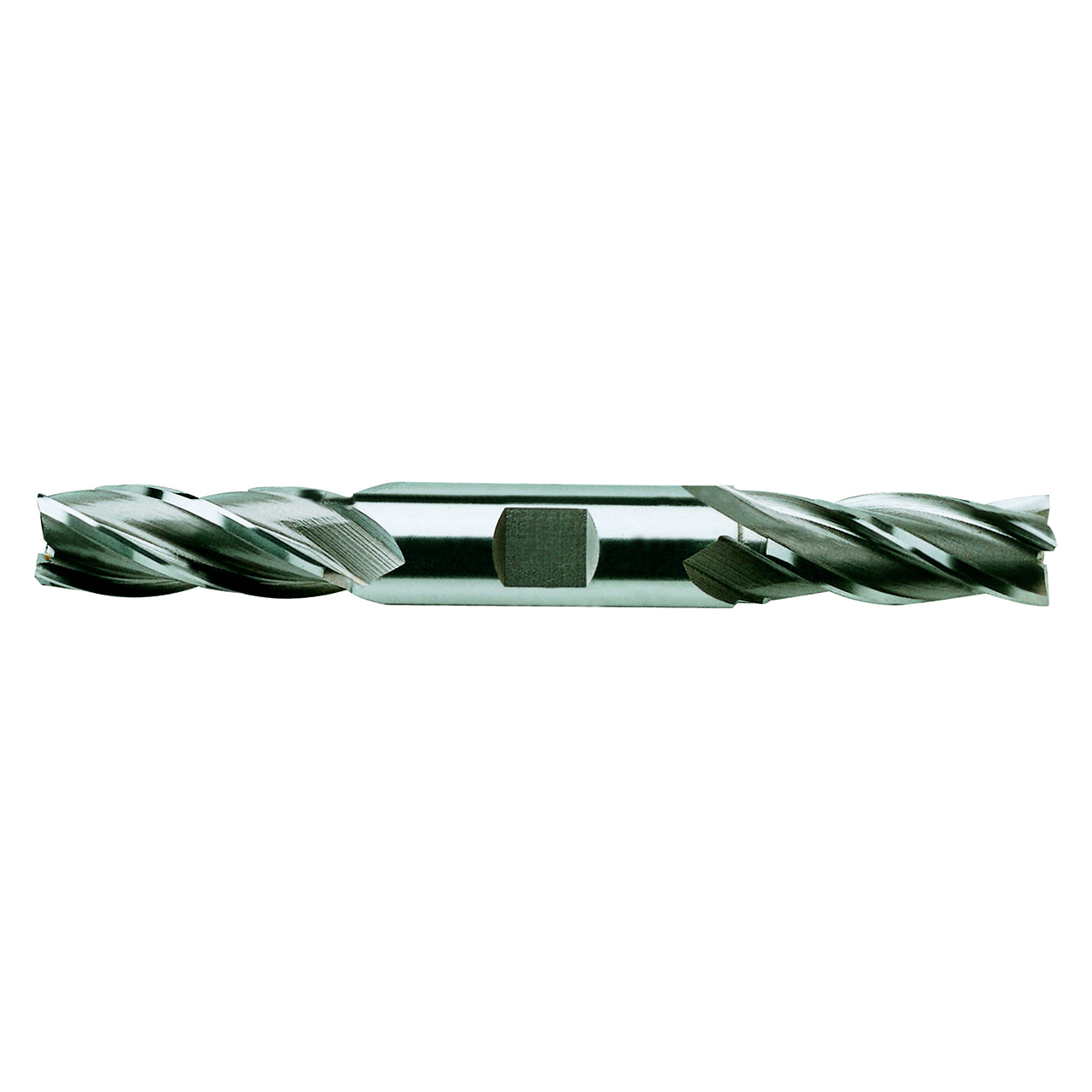

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.3125"
Diameter (Inch):
5/16"
Diameter (mm):
7.94mm
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (Inch):
3/8"
Shank Diameter (mm):
9.53mm
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (Inch):
3/4"
Length of Cut (mm):
19.05mm
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Number of Flutes:
4
Shank Style:
Flat
Helix Angle:
30 Degree
Finish/Coating:
TiAlN-Futura
Material:
HSS
Cut Type:
End Cutting
Cutting Direction:
Right
interval quantity:
1
