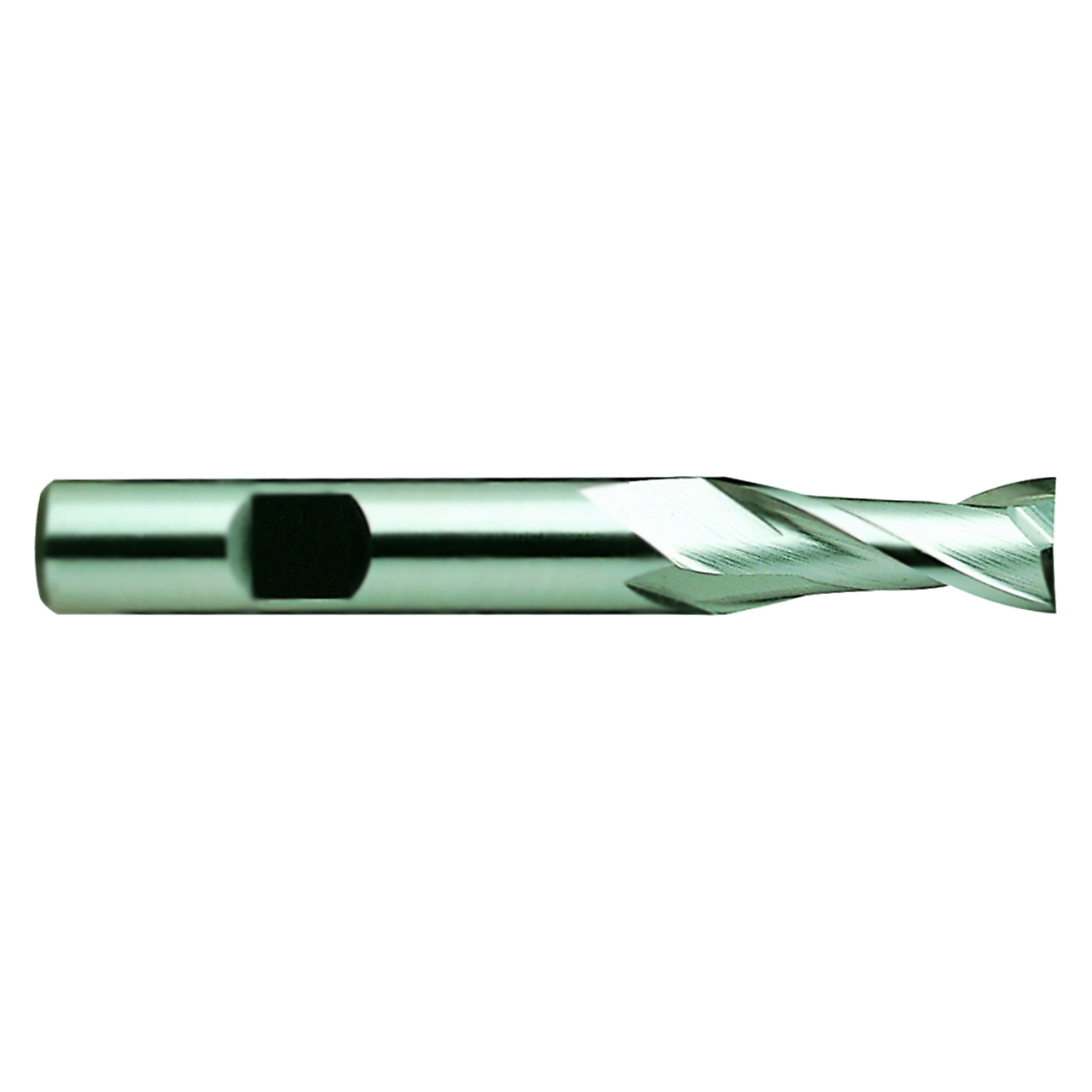

Product Specifications
| EDP Number | 1293 |
| Diameter (Decimal Inch) | 0.1875" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.4375" |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 2.3125" |
| Overall Length (Inch) | 2-5/16" |
| Overall Length (mm) | 58.74mm |
| Series | E2030 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
2
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Shank Type:
Flat
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
Center Cutting
Overall Length (Inch):
2-5/16"
Overall Length (Decimal Inch):
2.3125"
Overall Length (mm):
58.74mm
Helix Angle:
30 Degree
