Product Specifications
| EDP Number | 13577 |
| Diameter (Decimal Inch) | 0.2800" |
| Diameter (Inch) | 9/32" |
| Diameter (mm) | 7.14mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6875" |
| Length of Cut (Inch) | 11/16" |
| Length of Cut (mm) | 17.46mm |
| Overall Length (Decimal Inch) | 3.3750" |
| Overall-Length-(Inch) | 3-3/8" |
| Overall Length (mm) | 85.73mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Flat |
| Series | E5024 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Double End |

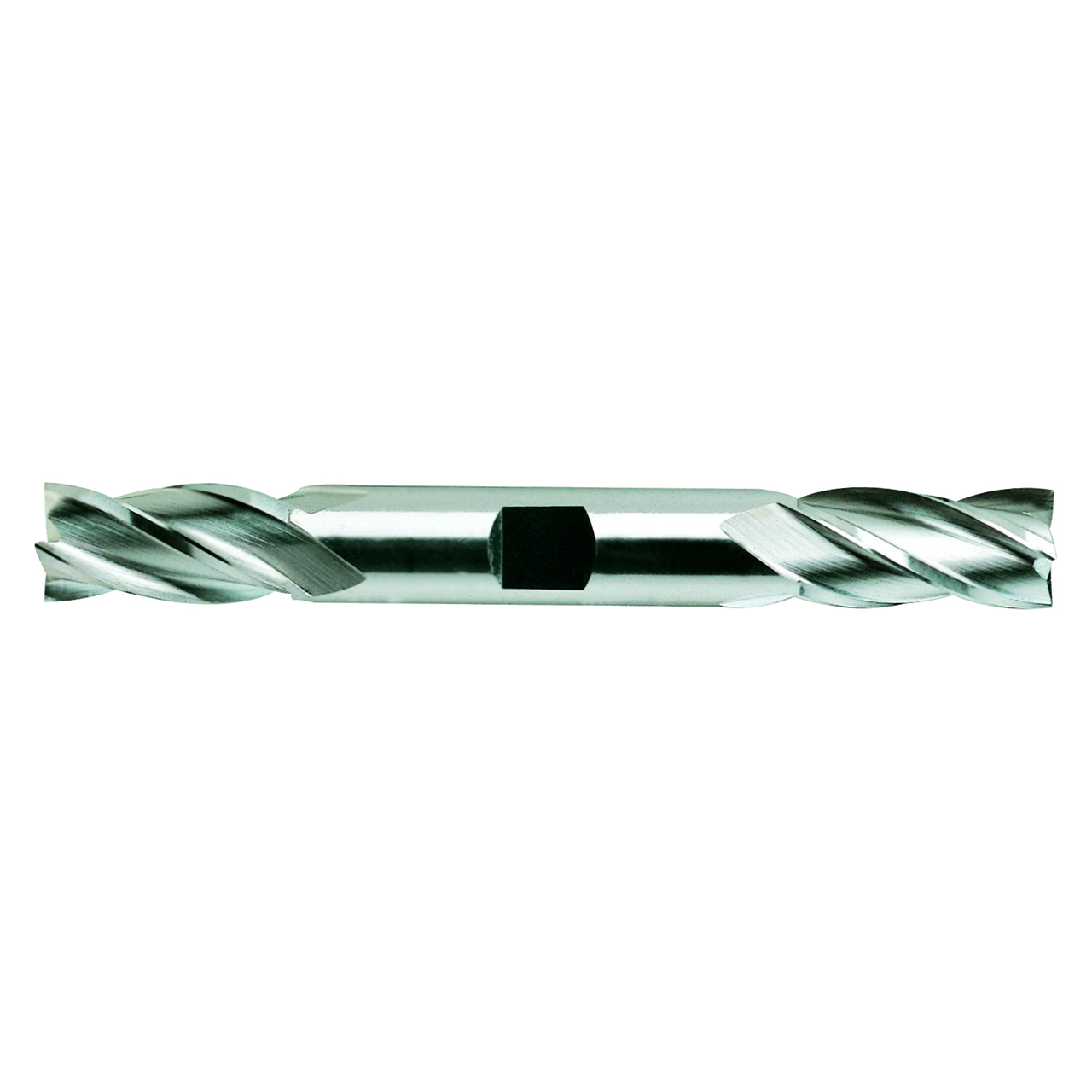

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
9/32"
Mill Diameter (Decimal Inch):
0.2800"
Mill Diameter (mm):
7.14mm
Number of Flutes:
4
Length of Cut (Inch):
11/16"
Length of Cut (Decimal Inch):
0.6875"
Length of Cut (mm):
17.46mm
Material:
Carbide
Finish/Coating:
Bright
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
P
Single or Double End:
Double
Overall Length (Inch):
3-3/8"
Overall Length (Decimal Inch):
3.3750"
Overall Length (mm):
85.73mm
Helix Angle:
30 Degree
