Product Specifications
| EDP Number | 15284 |
| Diameter (Decimal Inch) | 0.8661" |
| Diameter (Inch) | 13/15" |
| Diameter (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Series | E2482 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

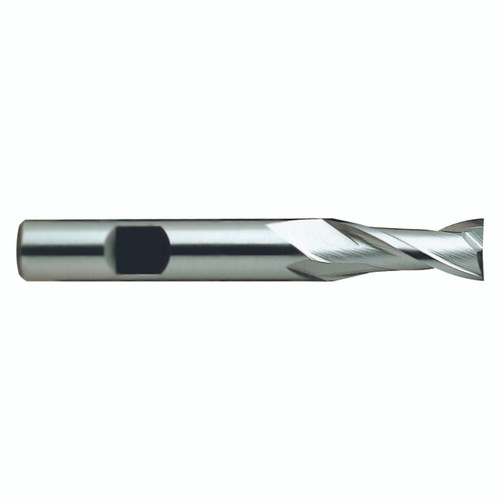

| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
13/15"
Mill Diameter (Decimal Inch):
0.8661"
Mill Diameter (mm):
22.00mm
Number of Flutes:
2
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Type:
Flat
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Application:
Center Cutting
Overall Length (Inch):
3-3/4"
Overall Length (Decimal Inch):
3.7500"
Overall Length (mm):
95.25mm
Helix Angle:
30 Degree
