| Manufacturer Part Number | 19087HF |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 4.0000" |
| Length of Cut (Inch) | 4" |
| Length of Cut (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.1250" |
| Overall Length (Inch) | 6-1/8" |
| Overall Length (mm) | 155.58mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 42 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1072 |
| End Type | Single End |
| Length Type | Extra Long |

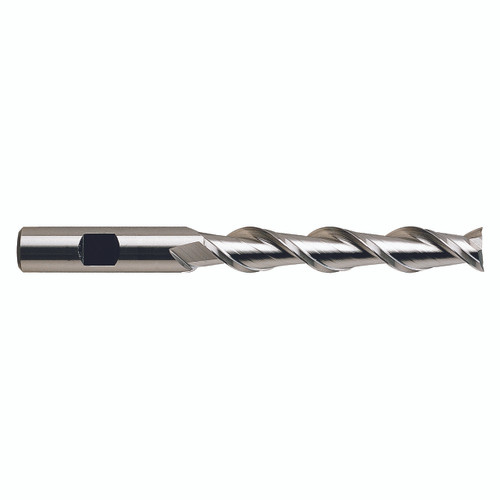

| Product Type | Square End Mill |
