Product Specifications
| EDP Number | 19109 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 4.0000" |
| Length of Cut (Inch) | 4" |
| Length of Cut (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 6.2500" |
| Overall Length (Inch) | 6-1/4" |
| Overall Length (mm) | 158.75mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 42 Degree |
| Material | HSS |
| Coating | Bright |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1072 |
| End Type | Single End |
| Length Type | Extra Long |

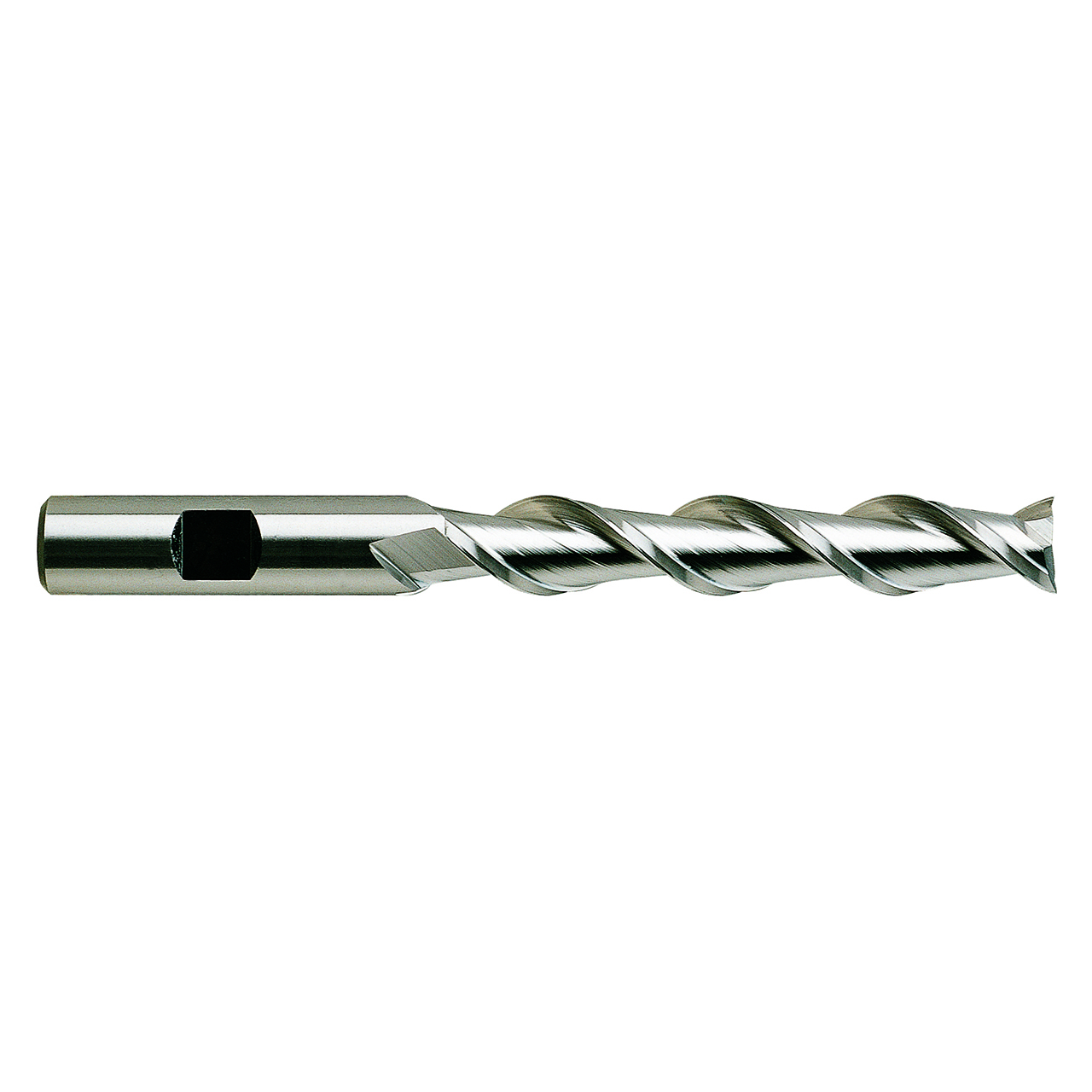

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.7500"
Diameter (Inch):
3/4"
Diameter (mm):
19.05mm
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (Inch):
3/4"
Shank Diameter (mm):
19.05mm
Length of Cut (Decimal Inch):
4.0000"
Length of Cut (Inch):
4"
Length of Cut (mm):
101.60mm
Overall Length (Decimal Inch):
6.2500"
Overall Length (mm):
158.75mm
Number of Flutes:
2
Shank Style:
Flat
Helix Angle:
42 Degree
Finish/Coating:
Bright
Material:
HSS
Cut Type:
Center Cut
Cutting Direction:
Right
interval quantity:
1
