Product Specifications
| Diameter (Decimal Inch) | 2091CTF |
| Diameter (Decimal Inch) | 0.2700" |
| Diameter (Inch) | 3/11" |
| Diameter (mm) | 6.91mm |
| Shank Diameter (Decimal Inch) | 0.2720" |
| Shank Diameter (Inch) | 3/11" |
| Shank Diameter (mm) | 6.91mm |
| Flute Length (Decimal Inch) | 2.2031" |
| Flute Length (Inch) | 2-13/64" |
| Flute Length (mm) | 55.96mm |
| Overall Length (Decimal Inch) | 4.2969" |
| Overall Length (Inch) | 4-19/64" |
| Overall Length (mm) | 109.14mm |
| Point Length (Decimal Inch) | 0.0495" |
| Point Length (mm) | 1.26mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Hole Tolerance | +0-.00087 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

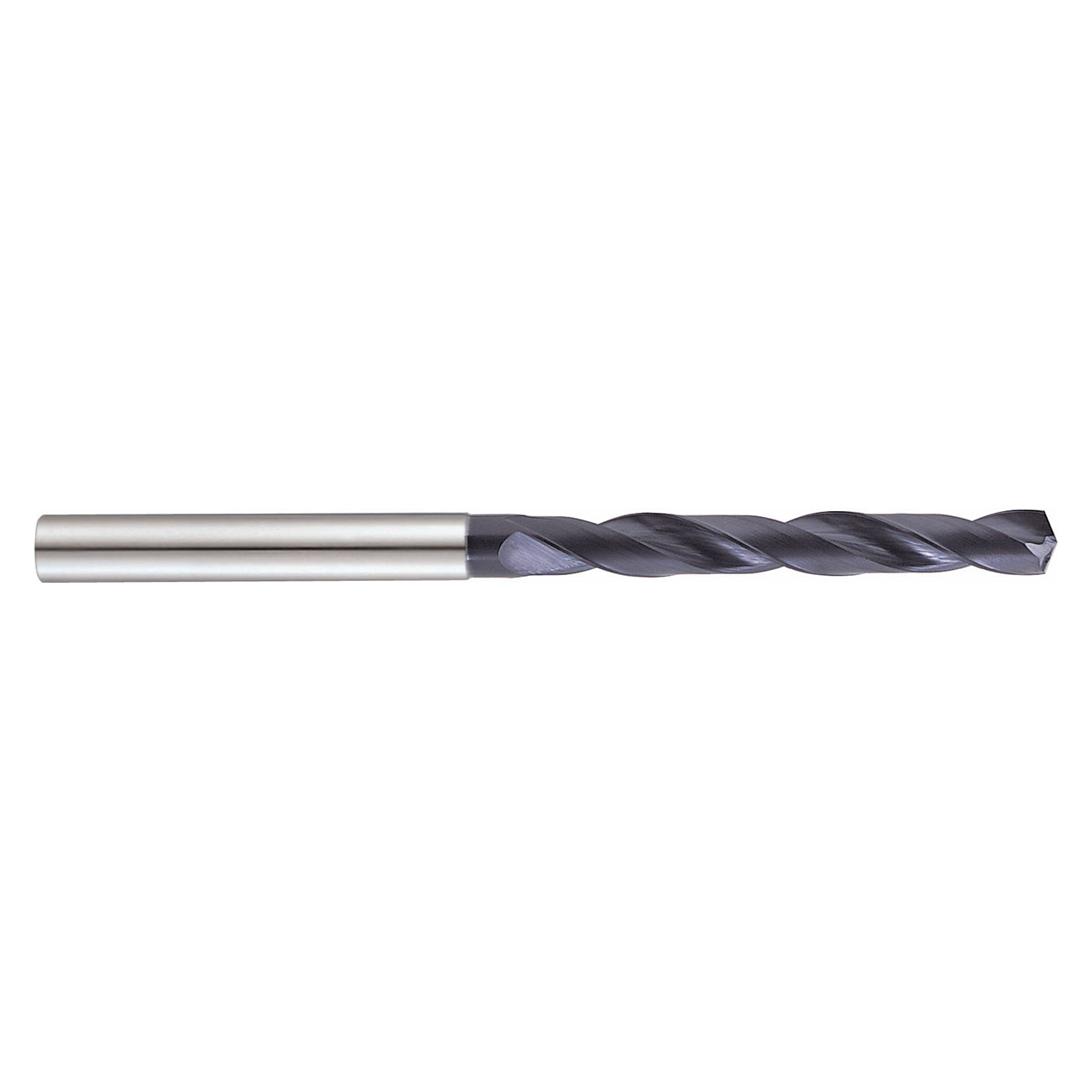

| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
3/11"
Drill Bit Size (Decimal Inch):
0.2700"
Drill Bit Size (mm):
6.91mm
Drill Bit Size (Letter):
I
Flute Length (Inch):
2-13/64"
Flute Length (Decimal Inch):
2.2031"
Flute Length (mm):
109.14mm
Overall Length (Inch):
4-19/64"
Overall Length (Decimal Inch):
4.2969"
Overall Length (mm):
109.14mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
