Features
- High velocity milling of aluminum & other non ferrous materials
- Excellent plunging capabilities.
- Improved surface roughness-cylindrical margin which is controlled tightly
- Maximum-metal removal rate.
- Excellent chip removal - higher rake angle, higher helix angle(42 Degree), bigger chip pocket
- Mirror face-excellent surface finish.
- Mill Diameter Tolerance: 0-.0012"; Shank Diameter Tolerance: 0-.0003"

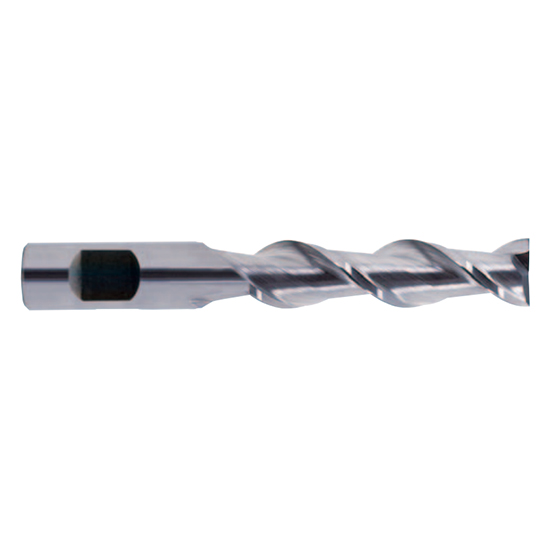

Product Specifications
| Brand | YG1 |
| Mill Diameter (Inch) | 3/8" |
| Shank Diameter (Inch) | 3/8" |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 2 |
| Finish/Coating | TiCN |
| Tool Material | Carbide |
| Center Cutting (yes/no) | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | 21584TC |
| Helix Angle | 42 Degree |
| Series | E5254 |
| Country of Origin | Korea |
| End Type | Plain |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Shank Diameter (Inch):
3/8"
Length of Cut (Inch):
1"
Overall Length (Inch):
2-1/2"
Number of Flutes:
2
Finish/Coating:
TiCN
Tool Material:
Carbide
Center Cutting:
Yes
Single or Double End:
Single
Cutting Direction:
Right Hand
