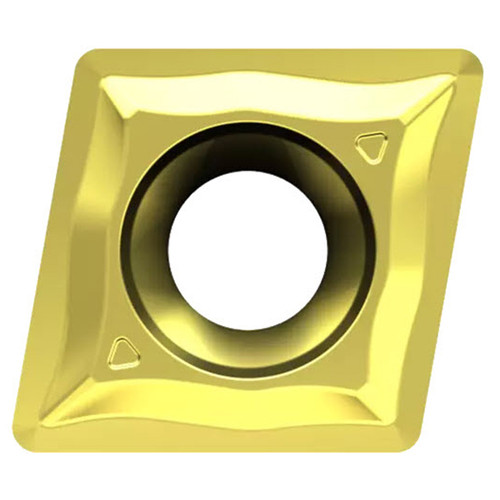

YG1 22002351 | 0.250" Inscribed Circle x 0.062" Thickness x 0.031" Radius x 0.244" Edge Length x 7 Degree Wiper Edge Clearence Angle 2 Edge Count TiAlSiN Coated Carbide Turning Positive Insert

$6.97
Brand:
YG1
Inscribed Circle (Decimal Inch):
0.2500";Inscribed Circle (Inch)=1/4""
Inscribed Circle (mm):
6.35mm
Thickness:
0.0620";Thickness (Inch)=1/16""
Thickness (mm):
1.59mm
Corner Radius (Inch):
1/32";Corner Radius (Decimal Inch)=0.0310""
Corner Radius (mm):
0.80mm
Grade:
YG401
Material:
Carbide
Coating:
TiAlSiN
SKU:
25292721
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
YG1 22002351 | 0.250" Inscribed Circle x 0.062" Thickness x 0.031" Radius x 0.244" Edge Length x 7 Degree Wiper Edge Clearence Angle 2 Edge Count TiAlSiN Coated Carbide Turning Positive Insert

Product Specifications
Manufacturer Part Number22002351
Inscribed Circle (Decimal Inch)0.250"
Inscribed Circle (Inch)1/4"
Inscribed Circle (mm)6.35mm
Thickness (Decimal Inch)0.062"
Thickness (Inch)1/16"
Thickness (mm)1.59mm
Corner Radius (Decimal Inch)0.031"
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Edge Length (Decimal Inch)0.244"
Edge Length (Inch)10/41"
Edge Length (mm)6.20mm
Chipbreaker ApplicationStainless Steel Finishing
Wiper Edge Clearance Angle7 Degree
GradeYG401
MaterialCarbide
Coating ProcessPVD
Sqaure Size (Decimal Inch)TiAlSiN
Cutting Edge Count2
ShapeRhombic 80°
Product TypeTurning Positive Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
