Product Specifications
| Manufacturer Part Number | 22002845 |
| Inscribed Circle Diameter (Inch) | 37/47" |
| Inscribed Circle Diameter (Decimal Inch) | 0.787" |
| Inscribed Circle Diameter (mm) | 20.00mm |
| Thickness (Inch) | 1/4" |
| Thickness (Decimal Inch) | 0.250" |
| Thickness (mm) | 6.35mm |
| Corner Radius (Inch) | 37/94" |
| Corner Radius (Decimal Inch) | 0.393" |
| Corner Radius (mm) | 10.00mm |
| Chipbreaker Geometry | UT |
| Wiper Edge Clearance (Degree) | 7 Degree |
| Grade | YG3030 |
| Coating | TiAlN |
| Material | Carbide |

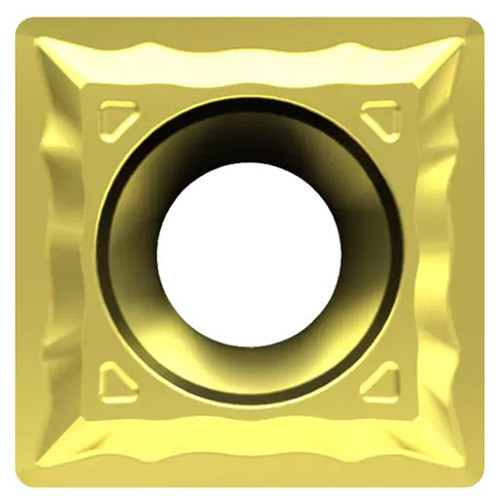

| Product Type | Turning Positive Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Inscribed Circle (Inch):
37/47"
Inscribed Circle (Decimal Inch):
0.7870"
Inscribed Circle (mm):
20.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
37/94"
Corner Radius (Decimal Inch):
0.3930"
Corner Radius (mm):
10.00mm
Grade:
YG3030
Finish/Coating:
TiCN-Al2O3
Material:
Carbide
interval quantity:
10
