Product Specifications
| EDP Number | 29009HF |
| Diameter (Decimal Inch) | 0.2813" |
| Diameter (Inch) | 9/32" |
| Diameter (mm) | 7.14mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Round Radius (Decimal Inch) | 0.2813" |
| Round Radius (Inch) | 9/32" |
| Round Radius (mm) | 7.14mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 0 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Corner Rounding |
| Corner Type | Corner Rounding |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1237 |

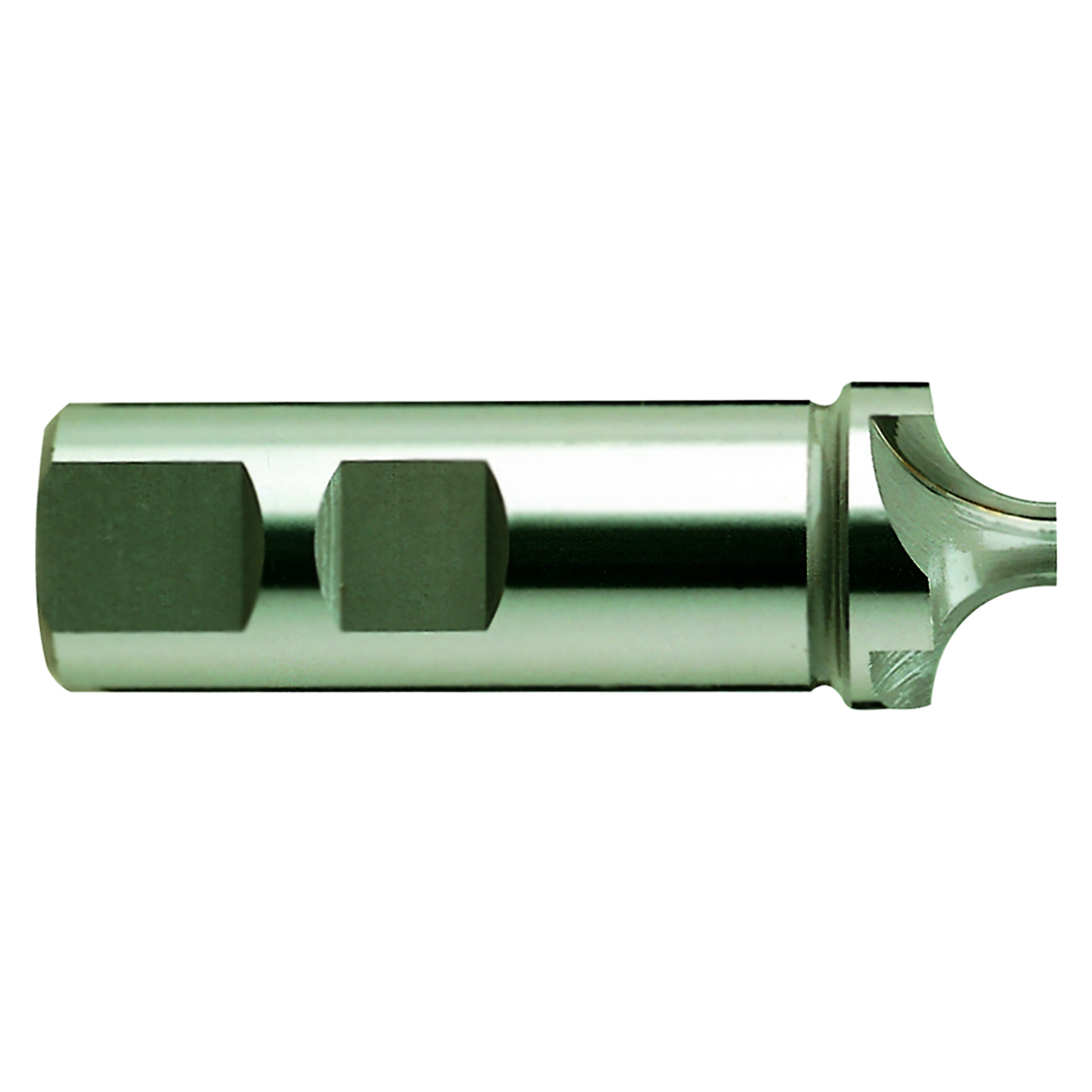

| Product Type | Corner Rounding End Mill |
