Product Specifications
| EDP Number | 29016HF |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Round Radius (Decimal Inch) | 0.3750" |
| Round Radius (Inch) | 3/8" |
| Round Radius (mm) | 9.53mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 0 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Corner Rounding |
| Corner Type | Corner Rounding |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1237 |

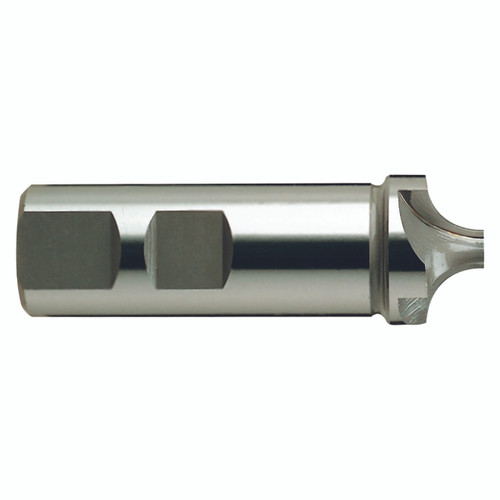

| Product Type | Corner Rounding End Mill |
