Product Specifications

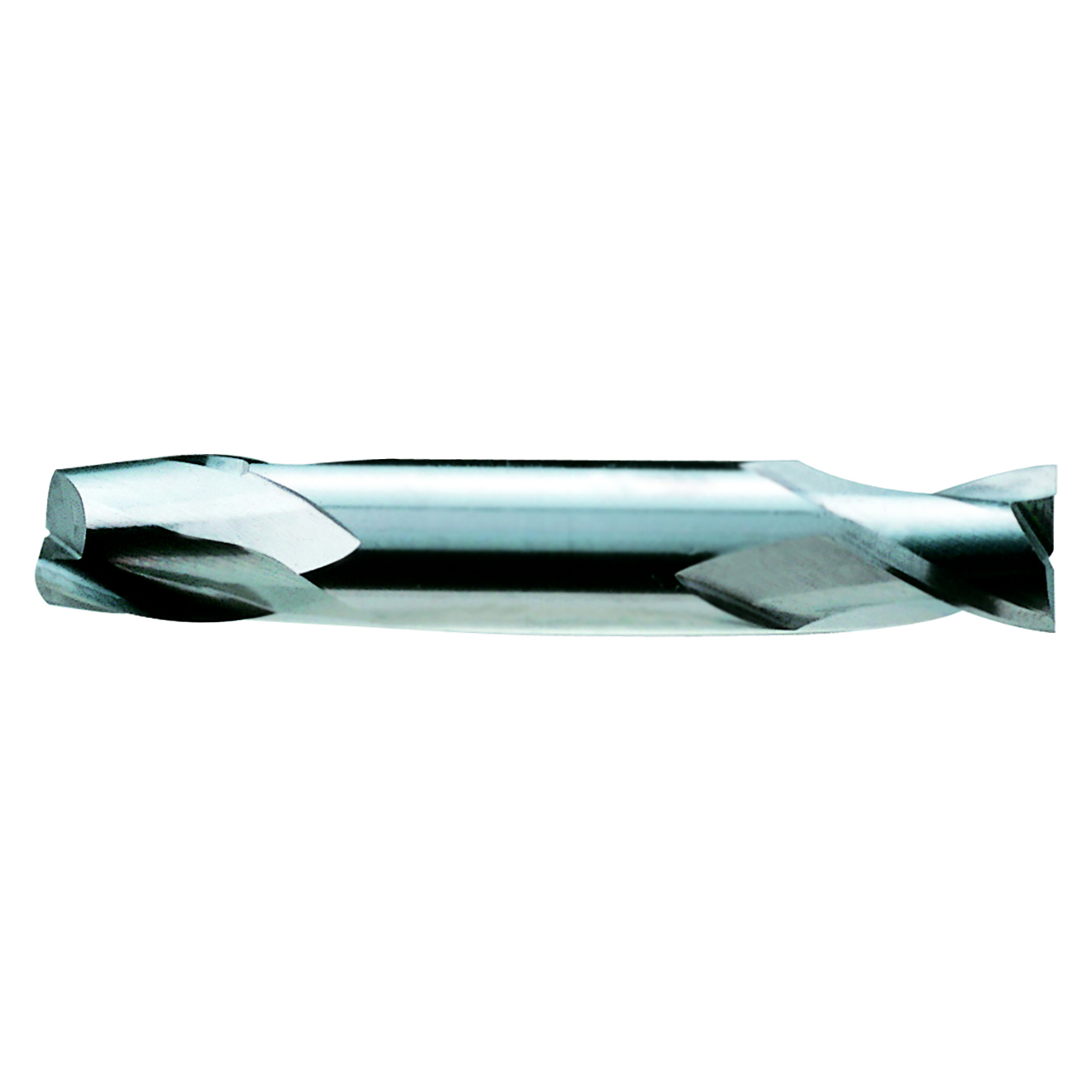

| EDP Number | 32557TC |
| Diameter (Decimal Inch) | 0.1100" |
| Diameter (Inch) | 7/64" |
| Diameter (mm) | 2.78mm |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Decimal Inch) | 0.1875" |
| Length of Cut (Inch) | 3/16" |
| Length of Cut (mm) | 4.76mm |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall-Length-(Inch) | 1-1/2" |
| Overall Length (mm) | 38.10mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5022 |
| Coating | TiCN |
| Material | Carbide |
| Cut Type | Center |
| End Type | Double End |
| Product Type | Square End Mill |
