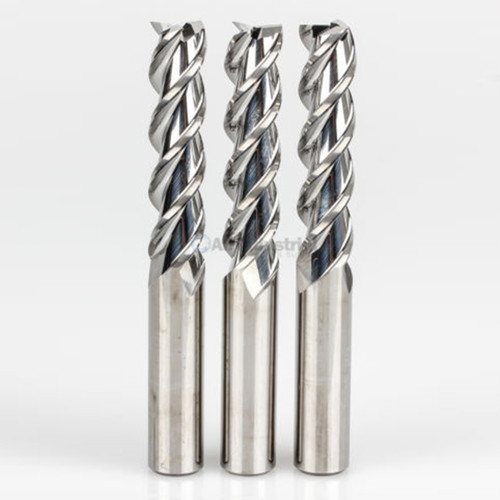

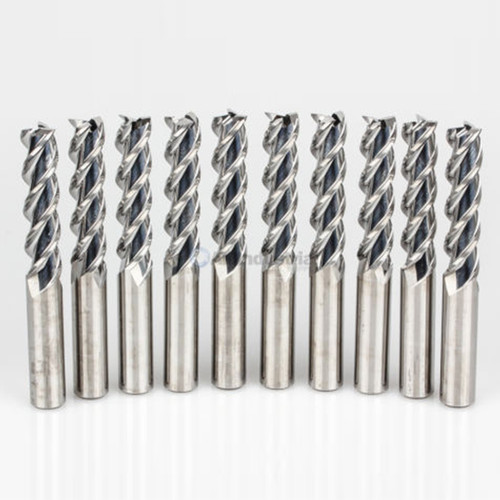

YG1 36579 | 5/16" Diameter x 5/16" Shank x 1-1/4" LOC x 3-1/2" OAL 3 Flute Bright Carbide Single Square End Mill

$43.89 $31.60
(You save $12.29)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
YG1
Mill Diameter (Inch):
5/16"
Shank Diameter (Inch):
5/16"
Length of Cut (Inch):
1-1/4"
Overall Length (Inch):
3-1/2"
Number of Flutes:
3
Finish/Coating:
Bright
Tool Material:
Carbide
Center Cutting:
Yes
Single or Double End:
Single
Cutting Direction:
Right Hand
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
25000835
UPC:
635963995485
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

When it comes to high-velocity milling of aluminum and other non-ferrous materials, the YG-1 Alu-Power end mills are in a league of their own. Featuring 3 flutes and a 45-degree helix, these end mills are designed to provide harmonic balance at high-speed conditions for smooth cutting. The cylindrical margin of the Alu-Power end mills is tightly controlled to improve surface roughness, and the superior chip evacuation ensures maximum metal removal rate.

In addition to its impressive performance, the YG-1 Alu-Power end mills also produce a mirror-like surface finish, making them an excellent choice for finishing work. With mill diameter tolerance of 0-.0005" and shank diameter tolerance of 0-.0003", the Alu-Power end mills provide consistent, accurate results every time. If you're looking for an end mill that can keep up with your high-velocity machining needs while delivering exceptional surface finish, look no further than YG-1 Alu-Power end mills.

Features

  • High velocity milling of aluminum & other non-ferrous materials
  • 3 flute and 45° helix allow harmonic balance at high speed condition and smooth cutting.
  • Improved surface roughness-cylindrical margin which is controlled tightly
  • Maximum-metal removal rate.
  • Superior chip evacuation.
  • Mirror face-excellent surface finish.
  • Mill Diameter Tolerance: 0-.0005"; Shank Diameter Tolerance: 0-.0003"
Product Specifications
Brand YG1
Mill Diameter (Inch) 5/16"
Shank Diameter (Inch) 5/16"
Length of Cut (Inch) 1-1/4"
Overall Length (Inch) 3-1/2"
Number of Flutes 3
Finish/Coating Bright
Tool Material Carbide
Center Cutting (yes/no) Yes
Single or Double End Single
Cutting Direction Right Hand
Flute Direction Right
MPN 36579
Helix Angle 45°
Series E5982
Country of Origin Korea
End Type Plain
