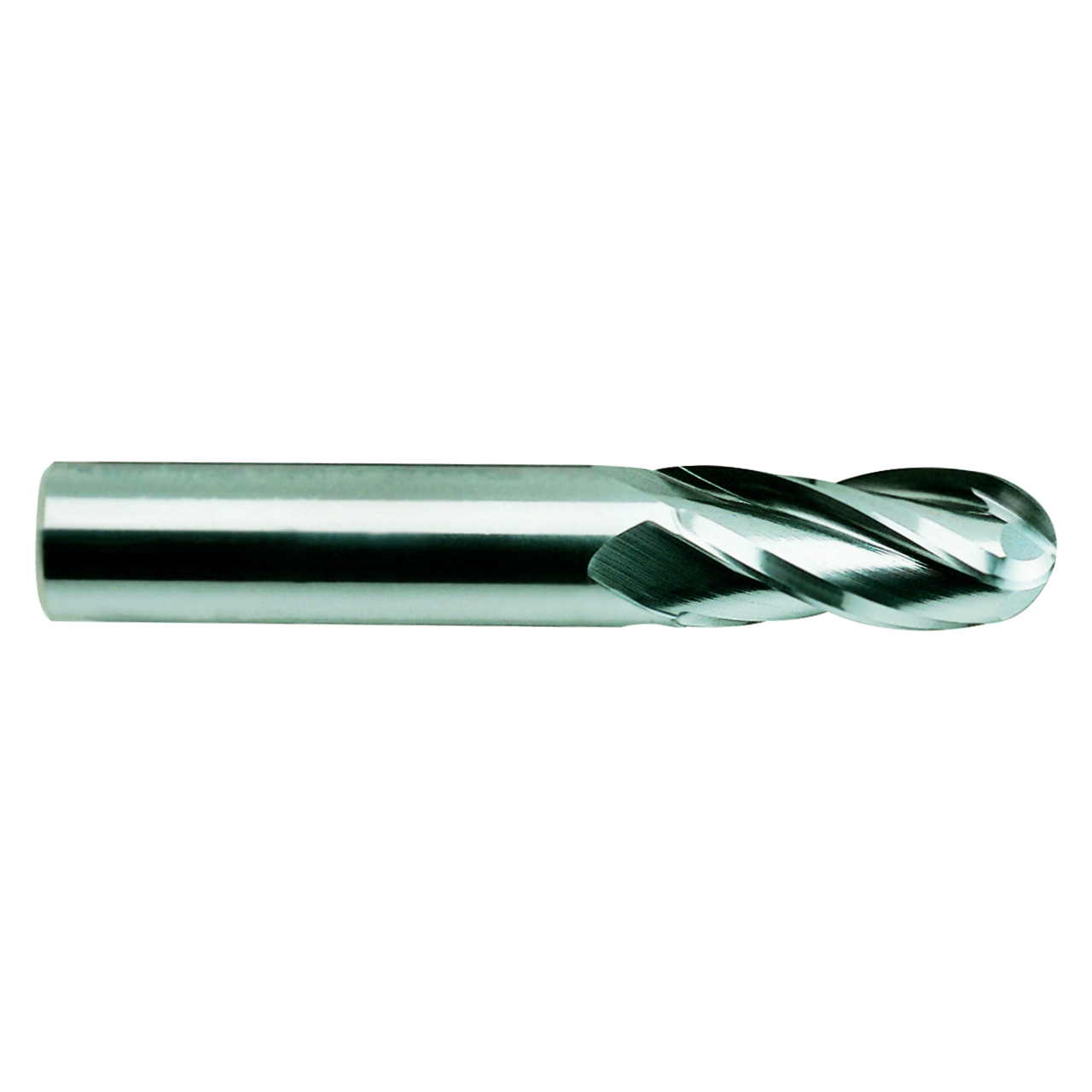

Product Specifications
| EDP Number | 41565TF |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (Inch) | 3/16" |
| Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall-Length-(Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Ball Nose Radius (Inch) | 3/32" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5249 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Regular |
| End Type | Single End |
| Product Type | Ball End Mill |
